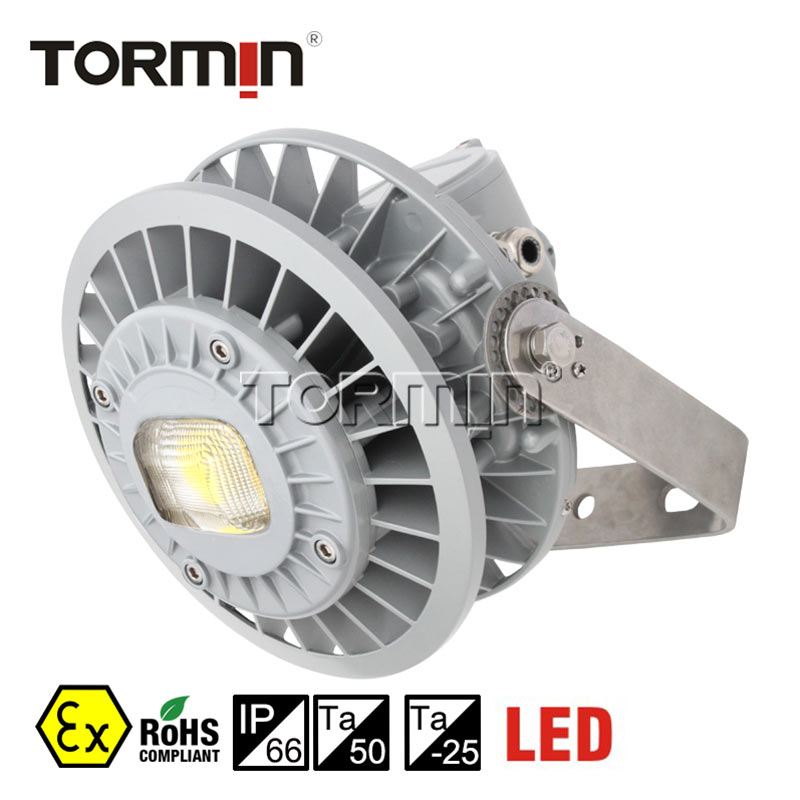

BC9306AS / BC9306BS Explosion Proof Emergency Lights

BC9306AS and BC9306BS provide bracket-mounted emergency illumination for industrial work areas. AS references combine normal lighting with emergency operation; BS references are intended for emergency illumination.

Emergency power options
15 / 25 W
Emergency duration
15 W: 120 min; 25 W: 70 min
Input voltage
90–264 VAC
Ingress protection
IP66

Bracket-family emergency lighting

Operating arrangement by model

The AS/BS choice separates maintained lighting from the emergency-only arrangement.

Three listed beam patterns

The emergency table covers 60° × 80°, 90° × 110° and 200° distributions, with their own emergency-output rows.

Separate wiring chamber

The design provides an independent chamber for cable termination and maintenance access.

Treated housing and stainless fittings

The aluminium housing has a protective surface treatment and 304 stainless steel exposed fasteners.

Choose your configuration

Select a listed catalogue reference and add your installation requirements.

Additional installation and specification requirements are confirmed with your quotation.

Catalogue configurations

ModelSupplyPowerBeam distributionEmergency powerEmergency durationOperationSpace-height ratioEmergency luminous fluxSelect
BC9306AS-L40-15-60°×80°90–264 VAC40 W60°×80°15 W120 minMaintained emergency1.251,800 lm
BC9306AS-L40-25-60°×80°90–264 VAC40 W60°×80°25 W70 minMaintained emergency1.253,300 lm
BC9306AS-L40-15-90°×110°90–264 VAC40 W90°×110°15 W120 minMaintained emergency1.751,700 lm
BC9306AS-L40-25-90°×110°90–264 VAC40 W90°×110°25 W70 minMaintained emergency1.753,100 lm
BC9306AS-L40-15-200°90–264 VAC40 W200°15 W120 minMaintained emergency1.751,400 lm
BC9306AS-L40-25-200°90–264 VAC40 W200°25 W70 minMaintained emergency1.752,400 lm
BC9306BS-L15-60°×80°90–264 VAC—60°×80°15 W120 minAuto emergency1.251,800 lm
BC9306BS-L25-60°×80°90–264 VAC—60°×80°25 W70 minAuto emergency1.253,300 lm
BC9306BS-L15-90°×110°90–264 VAC—90°×110°15 W120 minAuto emergency1.751,700 lm
BC9306BS-L25-90°×110°90–264 VAC—90°×110°25 W70 minAuto emergency1.753,100 lm
BC9306BS-L15-200°90–264 VAC—200°15 W120 minAuto emergency1.751,400 lm
BC9306BS-L25-200°90–264 VAC—200°25 W70 minAuto emergency1.752,600 lm

Technical specifications

Electrical and performance data

Input voltage (V)90~264VAC
Rated frequency50Hz / 60Hz
Light sourceLED
CRI (Ra)70 (80 optional)
Life time (h)50,000
CCT4000K(3000K/5000K optional)
Time of charging (h)>6
Rated capacity2.6Ah / 14.8V
Printed Ex markingEx db eb IIC T6/T5 Gb; Ex tb IIIC T80°C/T95°C Db
Catalogue application areasGas Zones 1 and 2; dust Zones 21 and 22. Confirm the applicable model marking and installation conditions.

Housing and installation data

Cable entryM20×1.5
Leading-in cable diameterφ6mm~φ12mm
TerminalsMulti-core: ≤2.5 mm²; single-core: ≤4 mm²
Dimension (mm)245×260×270
Net weight (kg)4.9
Ingress protectionIP66
ATEX certificate:EPT 16 ATEX 2484 X
Archived copy on this site; confirm current status before specification.
IECEx certificate:IECEx CML 24.0116X
Archived copy on this site; confirm current status before specification.

BC9306AS, BC9306BS ATEX & IECEx certificates

Dimensions and mounting

Original catalogue drawings. Dimensions are in millimetres unless stated otherwise. Open an image to inspect the full-size drawing.

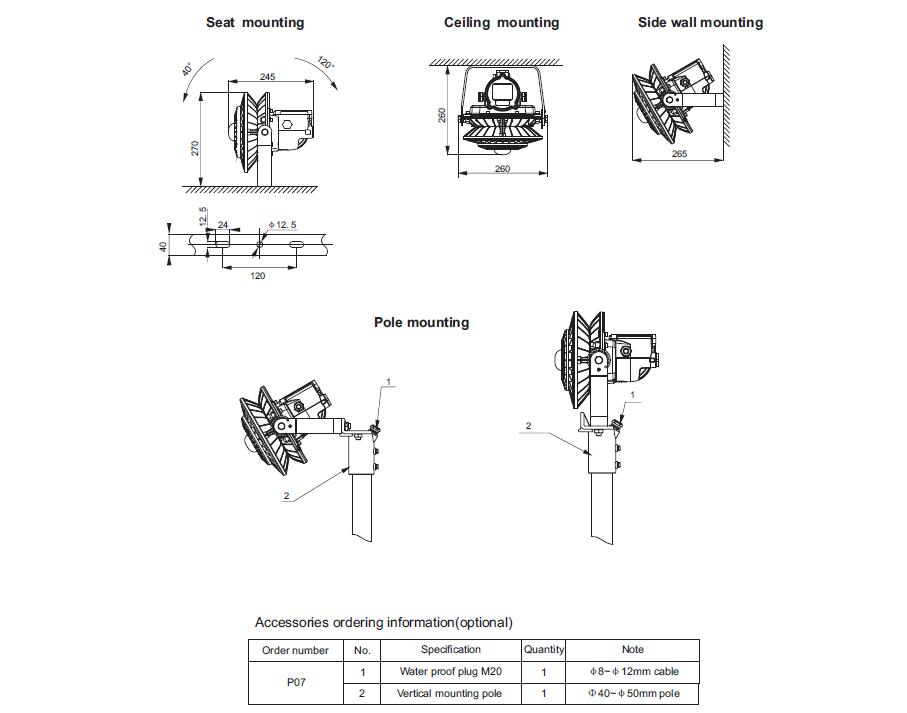

BC9306AS-BS original dimension and mounting drawing
Original dimension and mounting drawings · dimensions in mm

Catalogue ordering references

Catalogue ordering references
Catalogue referenceInput voltageNormal / rated power (W)BeamEmergency power (W)Emergency output (lm)Emergency duration (min)
BC9306AS-L40-15-60°×80°90–264 VAC4060°×80°151800120
BC9306AS-L40-25-60°×80°90–264 VAC4060°×80°25330070
BC9306AS-L40-15-90°×110°90–264 VAC4090°×110°151700120
BC9306AS-L40-25-90°×110°90–264 VAC4090°×110°25310070
BC9306AS-L40-15-200°90–264 VAC40200°151400120
BC9306AS-L40-25-200°90–264 VAC40200°25240070
BC9306BS-L15-60°×80°90–264 VAC—60°×80°151800120
BC9306BS-L25-60°×80°90–264 VAC—60°×80°25330070
BC9306BS-L15-90°×110°90–264 VAC—90°×110°151700120
BC9306BS-L25-90°×110°90–264 VAC—90°×110°25310070
BC9306BS-L15-200°90–264 VAC—200°151400120
BC9306BS-L25-200°90–264 VAC—200°25260070

Optional vertical-pole mounting accessories

Optional vertical-pole mounting accessories
Kit / referenceItemDescriptionQuantityNotes
P071M20 waterproof plug1For Ø8–12 mm cable
P072Vertical mounting pole1For Ø40–50 mm pole

Catalogue spacing, mounting height and replacement guide

Catalogue spacing, mounting height and replacement guide
ReferenceSpace-height ratioMounting heightEquivalent metal-halide wattage (catalogue)PDF page
BC9306AS-L40-15-60°×80°1.25—100 W / 35 W94
BC9306AS-L40-25-60°×80°1.25—100 W / 70 W94
BC9306AS-L40-15-90°×110°1.75—100 W / 35 W94
BC9306AS-L40-25-90°×110°1.75—100 W / 70 W94
BC9306AS-L40-15-200°1.75—100 W / 35 W94
BC9306AS-L40-25-200°1.75—100 W / 70 W94
BC9306BS-L15-60°×80°1.25—35 W94
BC9306BS-L25-60°×80°1.25—70 W94
BC9306BS-L15-90°×110°1.75—35 W94
BC9306BS-L25-90°×110°1.75—70 W94
BC9306BS-L15-200°1.75—35 W94
BC9306BS-L25-200°1.75—70 W94

Ordering notes

  • Confirm the exact variant, temperature class and ambient conditions against the applicable model documents.
  • Type A combines normal lighting and emergency operation; Type B provides emergency lighting only.
  • The catalogue lists manual emergency activation for the A/B arrangements.

Photometric curves

Original catalogue curves. Read each curve with its listed model, beam and supply. Open an image to inspect the full-size plot.

BC9306AS, BC9306BS · model and light-distribution reference · catalogue PDF page 94
BC9306AS, BC9306BS · model and light-distribution reference · catalogue PDF page 94 · Open full-size image ↗

Product documents

BC9306AS, BC9306BS · product datasheet

Original catalogue extract · 3 pages · PDF · 332 KB

View document

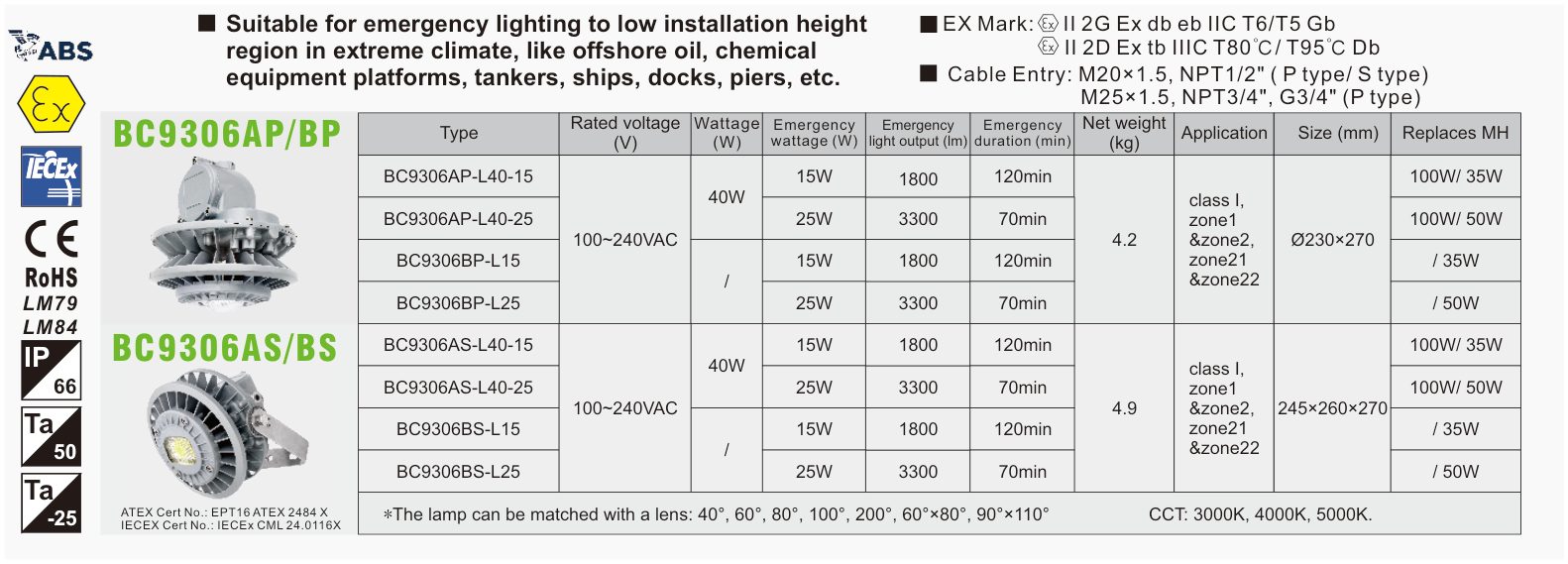

BC9306AS, BC9306BS · 2025 TORMIN Explosion Proof Lighting Catalogue

Original catalogue pages 93, 94, 95

View document
