BC5200 model information
| IP Rating | IP66 |
|---|---|
| Ambient Temperature | -20℃ to +40℃ |
These values come from the supplied product record. Use the catalogue and model-specific documents to confirm the ordering configuration.
Product configurations & catalogue specifications
Original TORMIN catalogue reference. Values apply to the individual model and configuration shown; please confirm the ordering code and applicable documentation with our team.

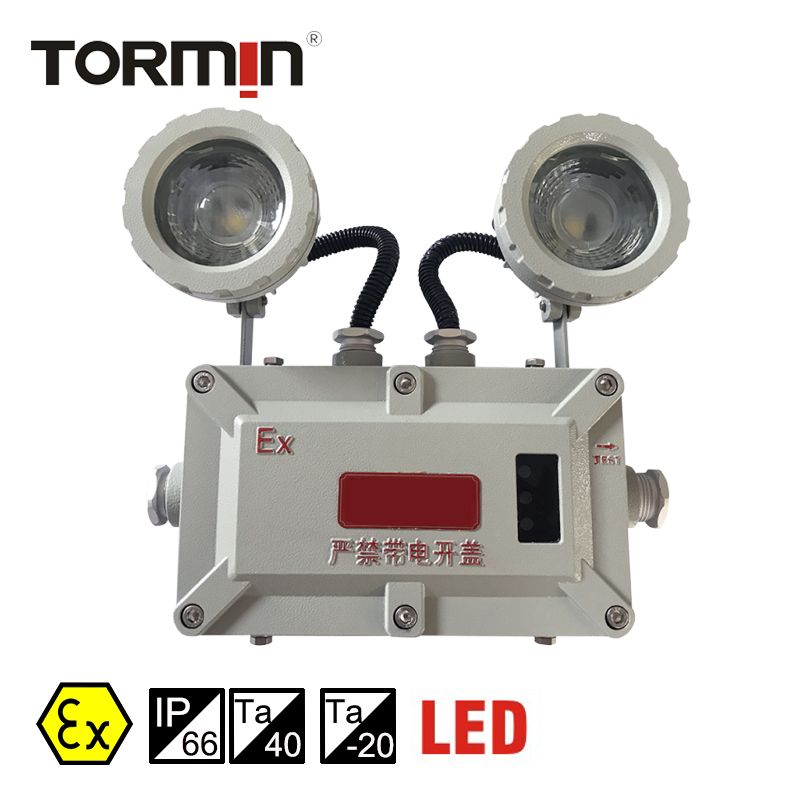

TM-ZFZD-E6W-BC5200
| Product type | Explosion-Proof Twin-Head Emergency Light |
|---|---|
| Power options | 2 × 3 W |

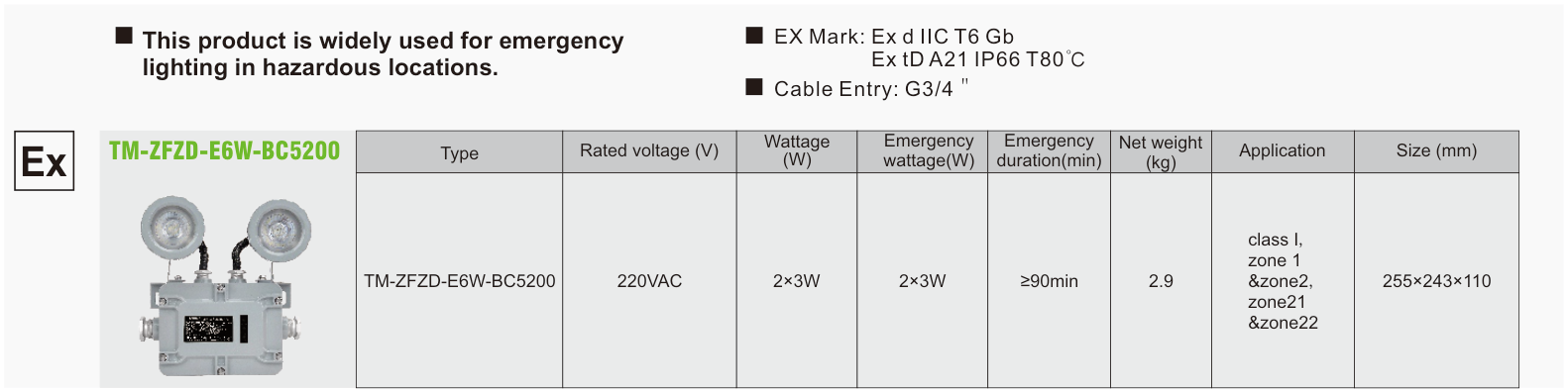

| Catalogue location | PDF page 7 |
Additional product information and earlier documentation
Some specifications below may describe earlier or alternative configurations. Use the model-specific catalogue table above when reviewing this supplied edition.
Application
1. Mainly used as a channel mark or as an emergency channel mark in the event of power failure.
2. Harsh environment, moist area.
3. Gas explosive environment: Group IIA, IIB.
Characteristics
1. This product is made of aluminum alloy shell, the surface is electrostatically sprayed, the appearance is beautiful, and it has the
functions of waterproof, dustproof and anti-corrosion.
2. The circuit board is equipped with a circuit board and an emergency device, and the circuit board has terminals for wiring.
3. The transparent cover and the shell are treated by an adhesive structure, and the length of the adhesive joint surface is not less than 10 mm. The degree of protection is IP66.
4. The cable is connected to the terminal through the lead-in device and the grounding screw is provided inside and outside the casing. The user should use the product to be reliably grounded.
Main Specification
|
Input Voltage |
90–264VAC |
|
Emergency Voltage |
DC3.6V |
|
Emergency Time |
90min |
|
Light Source |
LED |
|
Life time |
50,000h |
|
Emergency Wattage |
≤2×3W |
|
Screw Thread |
G3/4” |
|
Leading-in cable diameter |
Φ9mm –Φ11mm |
|
Dimension |
255x260x100mm |
|
Net Weight |
3.0Kg |
