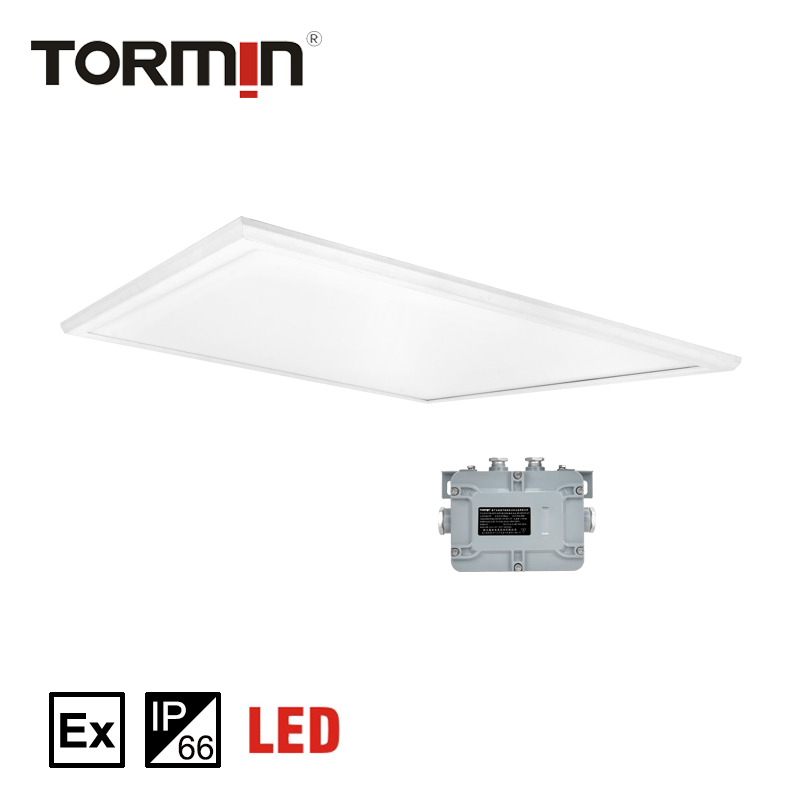

BC5404 Explosion Proof Cleanroom Panel Light — product image

HAZARDOUS AREA LIGHTING

BC5404 Explosion Proof Cleanroom Panel Light

BC5404 Explosion Proof Cleanroom Panel Light. Power options: 12–80 W; Input voltage: 90–264 VAC; Colour rendering: Ra 80.

Power options
12–80 W
Input voltage
90–264 VAC
Colour rendering
Ra 80
Ingress protection
IP66

Choose your configuration

Add your requirements for this product family to your enquiry.

These are enquiry requirements. The final ordering reference and available combination will be confirmed with your quotation.

Technical specifications

Model-specific technical data

Input Voltage90-264VAC
Frequency50Hz / 60Hz
Rated Wattage12W~80W
Light sourceLED
CCT6000K (3000K/ 4000K/ 5000K optional)
CRI (Ra)80
Cable entryG3/4"(NPT3/4", M25×1.5 optional)
Leading-in cable diameterΦ9mm -Φ14mm
Ingress protectionIP66

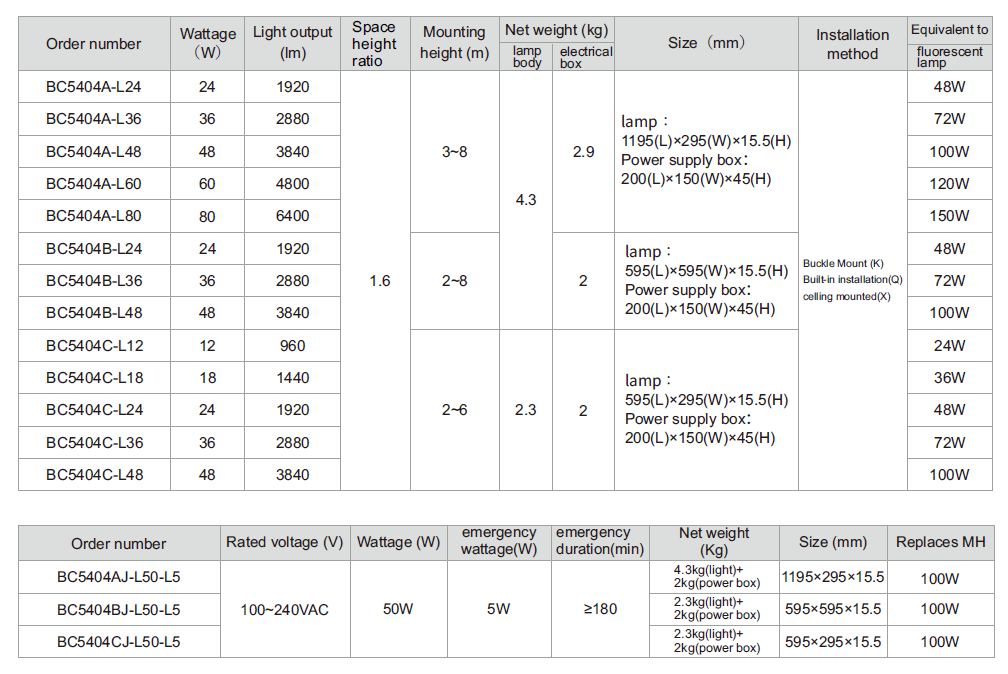

Original catalogue specifications

The original model table below contains the configuration-specific data.

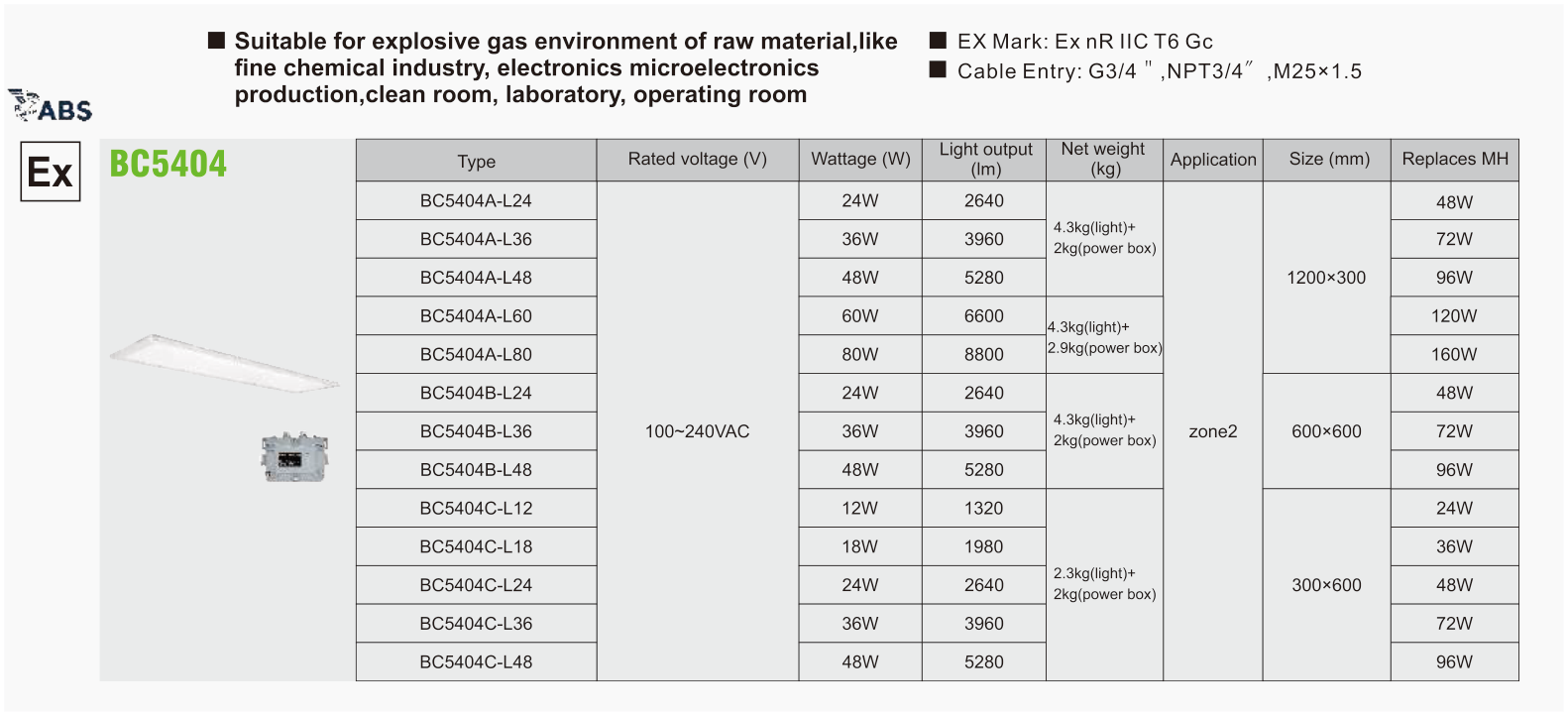

BC5404 original catalogue specification table; open the full-size image or download the catalogue for configuration details.
BC5404 · original catalogue reference

Installation drawings and product details

BC5404 original product detail image

Product documents

Download TORMIN Product Catalogue

Original model documentation

View document
