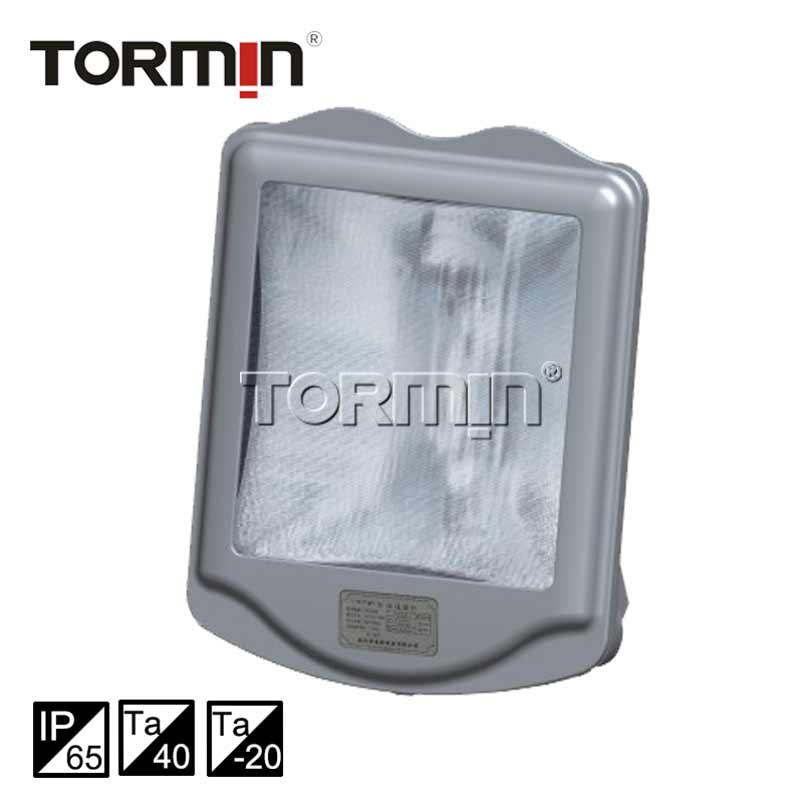

ZY8200 model information
| IP Rating | IP65 |
|---|
These values come from the supplied product record. Use the catalogue and model-specific documents to confirm the ordering configuration.
Application
This product is widely used in factories, workshops, substations and other places for flood lighting.
Characteristics
1. It adopts OSRAM brand light source, reliable performance;
2. Housing has an compact breathing apparatus, balance internal and external pressure, completely eliminate the condensation phenomena;
3. Adopts diffuse reflection technology and protection angle design, can effectively prevent glare, light soft evenly;
4. Mounting bracket has adjustment function settings, illumination angle can be adjusted up and down;
5. Light body with hand screw, tighten and open more convenient;
6. According to customer requirement, mounting bracket optional.
Main specification
|
Input Voltage |
220VAC |
|
Rated frequency |
50Hz |
|
Life time of light source (h) |
10,000 |
|
Light source |
Metal Halide Lamp |
|
Leading-in cable diameter |
Φ10mm –Φ12mm |
|
Dimension |
520x400x175mm |
|
Net Weight |
14Kg |
Ordering reference
|
Model number |
Rated Wattage (W) |
Light output (lm) |
Space height ratio |
Mounting height (m) |
|
ZY8200-J250 |
250 |
24,500 |
2.2 |
4~10m |
|
ZY8200-J400 |
400 |
35,300 |
