HAZARDOUS AREA LIGHTING

BC9105 Explosion Proof LED Floodlight

BC9105 Explosion Proof LED Floodlight. Power options: 150 / 300 / 600 W; 100 W sensing option; Rated voltage: 100–240 V AC; Ingress protection: IP66.

Power options
150 / 300 / 600 W; 100 W sensing option
Rated voltage
100–240 V AC
Ingress protection
IP66
Net weight by configuration
150 W: 5 kg; 300 W: 10.5 kg; 600 W: 25 kg

Choose your configuration

Add your requirements for this product family to your enquiry.

These are enquiry requirements. The final ordering reference and available combination will be confirmed with your quotation.

Technical specifications

Technical data

Power options150 / 300 / 600 W; 100 W sensing option
Rated voltage100–240 V AC
Net weight by configuration150 W: 5 kg; 300 W: 10.5 kg; 600 W: 25 kg
Dimensions by configuration150 W: 346 × 273 × 115 mm; 300 W: 350 × 502 × 115 mm; 600 W: 675 × 548 × 115 mm
Ingress protectionIP66

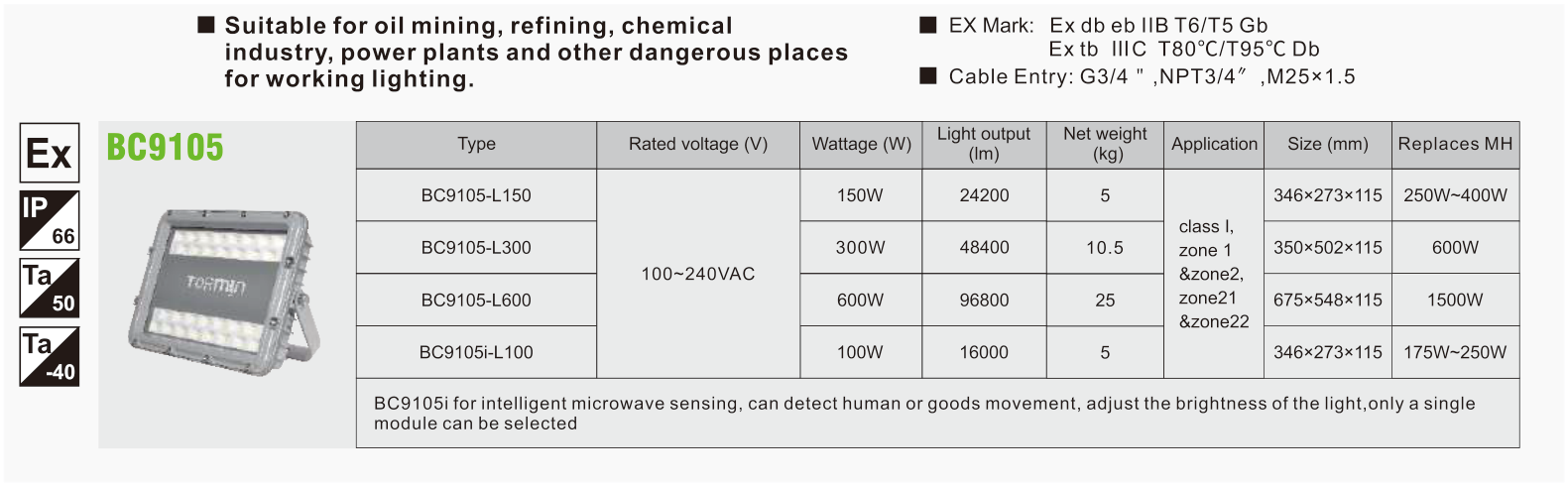

Original catalogue specifications

The original model table below contains the configuration-specific data.

BC9105 original catalogue specification table; open the full-size image or download the catalogue for configuration details.
BC9105 · original catalogue reference

Product documents

Download TORMIN Product Catalogue

Original model documentation

View document
