Two catalogue distributions
The ordering table lists 80° and 100° optics, with separate output values at each listed power.
HAZARDOUS AREA LIGHTING

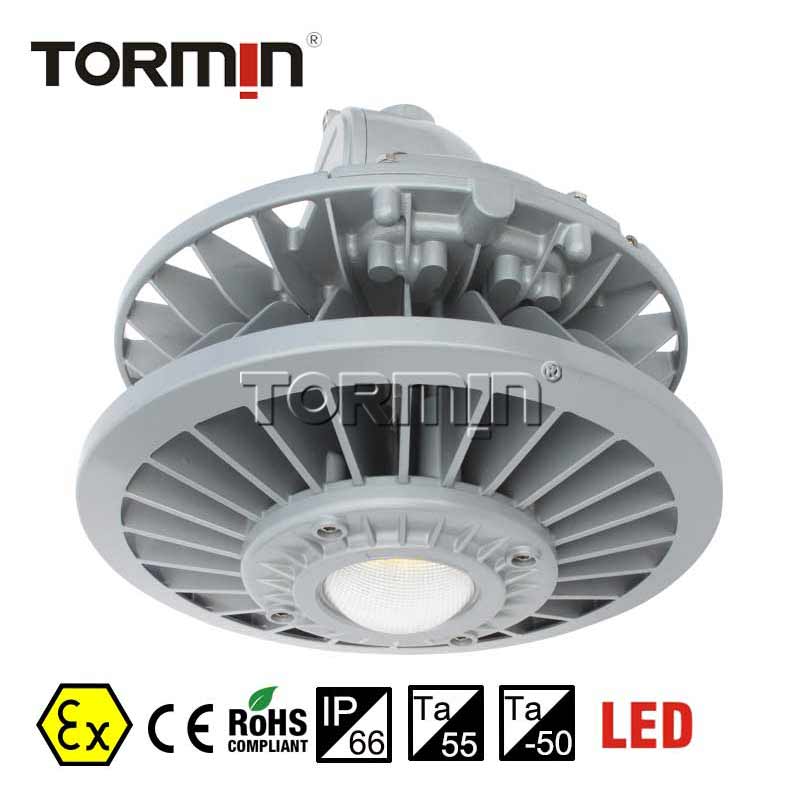

BC9307P provides fixed explosion proof LED lighting with 100–240 W catalogue references and 80° or 100° distributions. Match the optical reference to the layout and confirm the pole or angled-wall mounting hardware. Compare series in the high bay lighting range.
The ordering table lists 80° and 100° optics, with separate output values at each listed power.

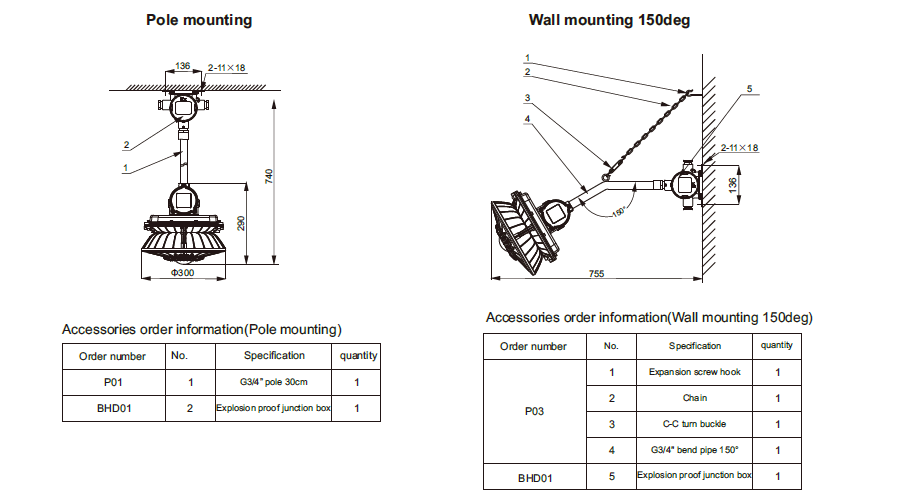

The installation drawings show pole mounting and a 150° wall arrangement, with the corresponding fittings.
Cable termination takes place in an independent chamber, with light-source replacement available without welding.
The surface-treated aluminium housing uses 304 stainless steel exposed fasteners.
Select a listed catalogue reference and add your installation requirements.
Additional installation and specification requirements are confirmed with your quotation.
| Model | Supply | Power | Beam distribution | Catalogue mounting height (m) | Space-height ratio | Catalogue luminous flux | Select |
|---|---|---|---|---|---|---|---|
| BC9307P-L100-80° | 90–264 VAC | 100 W | 80° | 8–12 m | 1.35 | 11,500 lm | |
| BC9307P-L120-80° | 90–264 VAC | 120 W | 80° | 8–12 m | 1.35 | 13,200 lm | |
| BC9307P-L150-80° | 90–264 VAC | 150 W | 80° | 10–15 m | 1.35 | 16,800 lm | |
| BC9307P-L200-80° | 90–264 VAC | 200 W | 80° | 10–15 m | 1.35 | 23,700 lm | |
| BC9307P-L240-80° | 90–264 VAC | 240 W | 80° | 15–25 m | 1.35 | 27,200 lm | |
| BC9307P-L100-100° | 90–264 VAC | 100 W | 100° | 8–12 m | 1.4 | 11,600 lm | |
| BC9307P-L120-100° | 90–264 VAC | 120 W | 100° | 8–12 m | 1.4 | 13,400 lm | |
| BC9307P-L150-100° | 90–264 VAC | 150 W | 100° | 10–15 m | 1.4 | 17,000 lm | |
| BC9307P-L200-100° | 90–264 VAC | 200 W | 100° | 10–15 m | 1.4 | 23,900 lm | |
| BC9307P-L240-100° | 90–264 VAC | 240 W | 100° | 15–20 m | 1.4 | 27,400 lm |
| Input voltage (V) | 90~264VAC |
|---|---|
| Rated frequency | 50Hz / 60Hz |
| CRI (Ra) | 70 (80 optional) |
| Life time (h) | 50,000 |
| CCT | 5000K(3000K/4000K optional) |
| Printed Ex marking | Ex db eb IIC T4/T3 Gb; Ex tb IIIC T130°C/T195°C Db |
| Ambient options printed in catalogue | −50 to +40 / +55 °C; exact variant and temperature class to be confirmed |
| Catalogue application areas | Gas Zones 1 and 2; dust Zones 21 and 22. Confirm the applicable model marking and installation conditions. |
| Cable entry | M20×1.5, M25×1.5, G3/4", NPT1/2", NPT3/4" |
|---|---|
| Terminals | Multi core: ≤2.5mm²; Single core: ≤4mm² |
| Dimension (mm) | φ300×290 |
| Net weight (kg) | 6.4 |
| Ingress protection | IP66 |
| ATEX certificate: | EPT 16 ATEX 2484 X Archived copy on this site; confirm current status before specification. |
|---|---|
| IECEx certificate: | IECEx CML 24.0116X Archived copy on this site; confirm current status before specification. |
Original catalogue drawings. Dimensions are in millimetres unless stated otherwise. Open an image to inspect the full-size drawing.
| Kit / reference | Item | Description | Quantity | Notes |
|---|---|---|---|---|
| P01 | 1 | G¾″ pole, 30 cm | 1 | |
| BHD01 | 2 | Explosion proof junction box | 1 |
| Kit / reference | Item | Description | Quantity | Notes |
|---|---|---|---|---|
| P03 | 1 | Expansion screw hook | 1 | |
| P03 | 2 | Chain | 1 | |
| P03 | 3 | C–C turnbuckle | 1 | |
| P03 | 4 | G¾″ bend pipe, 150° | 1 | |
| BHD01 | 5 | Explosion proof junction box | 1 |
| Reference | Space-height ratio | Mounting height | Equivalent metal-halide wattage (catalogue) | PDF page |
|---|---|---|---|---|
| BC9307P-L100-80° | 1.35 | 8–12 m | 250 W | 50 |
| BC9307P-L120-80° | 1.35 | 8–12 m | >250 W | 50 |
| BC9307P-L150-80° | 1.35 | 10–15 m | 400 W | 50 |
| BC9307P-L200-80° | 1.35 | 10–15 m | >400 W | 50 |
| BC9307P-L240-80° | 1.35 | 15–25 m | 600–800 W | 50 |
| BC9307P-L100-100° | 1.4 | 8–12 m | 250 W | 50 |
| BC9307P-L120-100° | 1.4 | 8–12 m | >250 W | 50 |
| BC9307P-L150-100° | 1.4 | 10–15 m | 400 W | 50 |
| BC9307P-L200-100° | 1.4 | 10–15 m | >400 W | 50 |
| BC9307P-L240-100° | 1.4 | 15–20 m | 600–800 W | 50 |
Original catalogue curves. Read each curve with its listed model, beam and supply. Open an image to inspect the full-size plot.

Original catalogue extract · 2 pages · PDF · 290 KB
View documentOriginal catalogue pages 49, 50
