ZW4303 / ZW4303A Double-Sided Signal Light — product image

INDUSTRIAL LIGHTING

ZW4303 / ZW4303A Double-Sided Signal Light

ZW4303 and ZW4303A provide signal indication and direction prompts for electricity, railway and shipping applications.

Ingress protection
IP65
Rated capacity
1.7 Ah
Rated voltage
3.7 V
Continuous discharge time
≥12 h

Two-sided portable signal lighting

Opposite-direction signals

The light can show steady or flashing signals in two opposing directions.

Magnetic or buckle mounting

The unit attaches to a metal surface magnetically or uses a buckle for fixed positioning.

Portable warning functions

A rubber housing, rechargeable battery and low-voltage prompt support portable signalling use.

Choose your configuration

Select a listed catalogue reference and add your installation requirements.

Additional installation and specification requirements are confirmed with your quotation.

Catalogue configurations

ModelDimensionsNet weightSelect
ZW4303100 × 140 mm410 g
ZW4303A100 × 280 mm530 g

Technical specifications

Electrical and performance data

Rated voltage3.7 V
Rated capacity1.7 Ah
Working current120 mA
Visible distance1500 m
Continuous discharge time≥12 h
Strobe discharge time≥30 h
Charge time6 h
Light source lifetime≥100,000 h
Battery lifeApproximately 1000 cycles

Housing and installation data

Ingress protectionIP65

Housing versions

Housing versions
ModelDimensions (mm)Net weight (g)
ZW4303100 × 140410
ZW4303A100 × 280530

Catalogue ordering configurations

Catalogue ordering configurations
Catalogue referenceDimensions (mm)Net weight
ZW4303100 × 140410 g
ZW4303A100 × 280530 g

Features and operating notes

  • The two-sided light can provide steady or stroboscopic warning signals in opposite directions at the same time.

Product documents

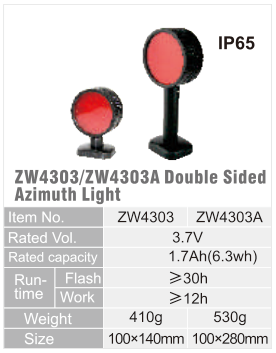

ZW4303 / ZW4303A · product datasheet

Original catalogue extract · 1 pages · PDF · 201 KB

View document

ZW4303 / ZW4303A · 2025 TORMIN Industrial Lighting Catalogue

Original catalogue pages 71

View document
