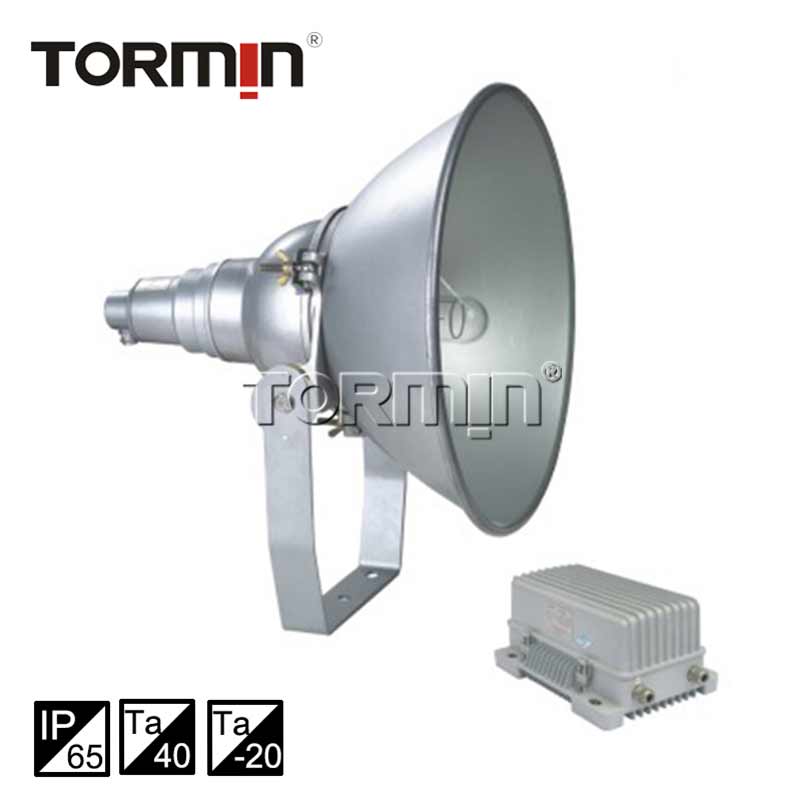

ZY8300, ZY8310 model information
| IP Rating | IP65 |
|---|
These values come from the supplied product record. Use the catalogue and model-specific documents to confirm the ordering configuration.
Application
Suitable for plant, medium and large factories, railway, bridge and other places for cast lighting.
Characteristics
1. It adopts OSRAM brand light source, reliable performance;
2. Housing has a compact breathing apparatus, balance internal and external pressure, completely eliminate the condensation phenomena;
3. It adopts inside and outside anti-earthquake design, effective solve lamp fall off, lamp life shortened, stent fracture and other issues due to strong vibrations;
4. Electrical box with a unique cooling structure, using thermal heat transfer mode accelerates heat transfer, effectively guarantee efficient cooling ballast, which can effectively guarantee electrical service life;
5. Electrical box adopts snap-on installation, you can hand open electrical box, making installation and repair more convenient and faster;
6. It adopts lightweight alloys and high-tech spray technology, the shell does not rust, no corrosion;
7. Use trim new technology to ensure shell integrity is good, reliable seal, waterproof and dustproof.
Main specification
|
Input Voltage |
220VAC 50Hz |
|
|
Ingress Protection |
IP65 |
|
|
Life time of light source (h) |
12,000 |
|
|
Light source |
Metal Halide Lamp |
|
|
Leading-in cable diameter |
Φ8mm –Φ10mm |
|
|
Dimension |
1000W(ZY8300) |
Lamp Φ526x615mm |
|
Ballast 325x215x150mm |
||
|
250W/ 400W (ZY8310) |
Lamp Φ420x445mm |
|
|
Ballast 325x215x150mm |
||
|
Net Weight |
1000W(ZY8300) |
Lamp: 7.5Kg |
|
Ballast: 15kg |
||
|
250W/ 400W (ZY8310) |
Lamp 7.2Kg |
|
|
Lamp 8Kg |
||
Ordering reference
|
Model number |
Rated Wattage (W) |
Light Output (lm) |
Space height ratio |
Mounting height (m) |
|
ZY8300-J1000 |
1,000 |
65000 |
1.3 |
10~35m |
|
ZY8310-J250 |
250 |
24,500 |
6~10m |
|
|
ZY8310-J400 |
400 |
35,300 |
