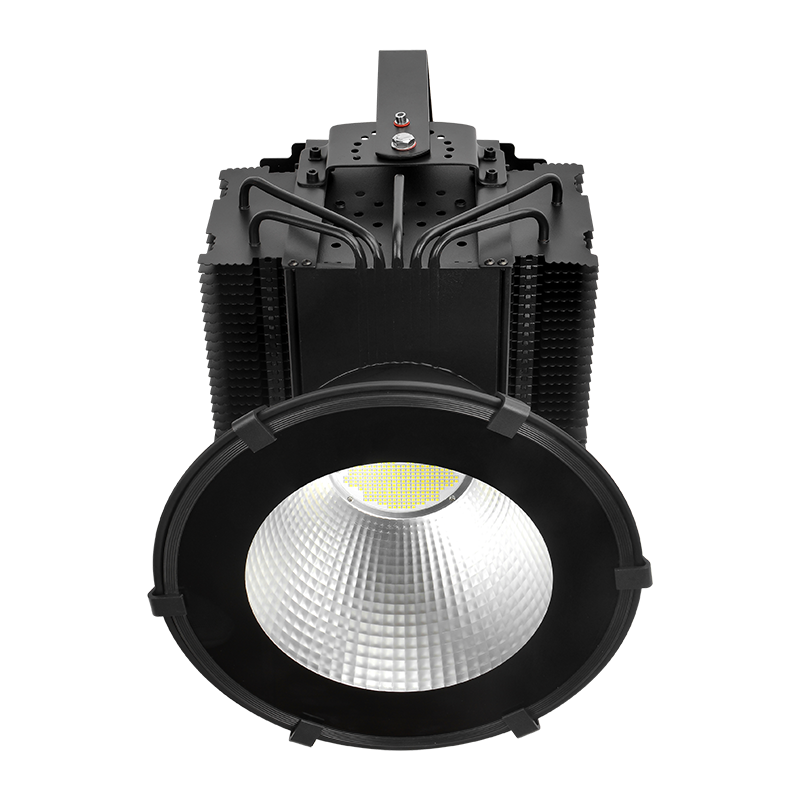

ZY8107 model information
| IP Rating | IP65 |
|---|
These values come from the supplied product record. Use the catalogue and model-specific documents to confirm the ordering configuration.
Application
It is suitable for the lighting of large-scale high ceiling places such as airports, steel plants, stadiums, etc.
Characteristics
■ Adopt high-tech surface spraying technology, wearresistant, corrosion-resistant, waterproof and dustproof, suitable for various harsh environments;
■ The radiator adopts omni-directional self-circulation design, which can be suitable for high temperature and high humidity working environment for a long time; the upper and lower ventilation fin structure does not accumulate dust;
■ The lamp adopts Philips light source, the spot has no dark area, and the overall light efficiency is approx 95lm/W;
■ AC and DC wide voltage constant power power supply, power factor up to 0.98.
Main specification
| Item | Technical Parameters | |
| Input voltage (V) | 90~305VAC | |
| Rated Frequency | 50Hz / 60Hz | |
| Rated wattage | 400W/ 500W | |
| Light source | LED | |
| Life time | 50,000hrs | |
| CRI | Ra 70 | |
| CCT | 5000K | |
| Dimension | φ500X550mm | |
| Net weight | 10.2Kg(400W)/ 12.5Kg(500W) | |
