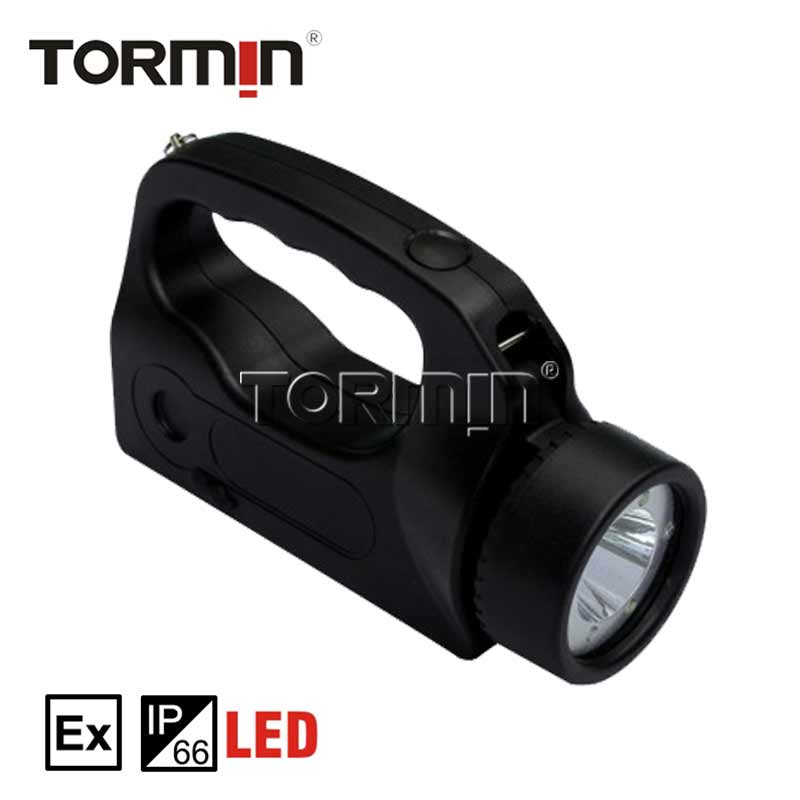

BW6210 Explosion Proof Searchlight — product image

HAZARDOUS AREA LIGHTING

BW6210 Explosion Proof Searchlight

BW6210 combines high/low lighting with a flood-beam mode for portable work. Its handle, magnetic base and adjustable head allow it to be used by hand or positioned near equipment.

Continuous Runtime / High
≥8 h
Light output
190 lm
Ingress protection
IP66
Net weight
0.35 kg

Handheld searchlighting with task-positioning options

120° adjustable head

The head tilts to direct the light toward the task.

Magnetic base

The base attaches to ferrous equipment for hands-free illumination.

Large handle and switch

The handle and button are sized for operation with gloved hands.

Battery status indication

The light includes a remaining-power indicator and a low-battery warning.

Choose your configuration

Select a listed catalogue reference and add your installation requirements.

Additional installation and specification requirements are confirmed with your quotation.

Technical specifications

Electrical and performance data

Rated voltage (V)3.7
Rated wattage (W)>1
Rated capacity (mAh)5200
Light output (lm)190
Continuous Runtime / High (h)≥8
Continuous Runtime / Low (h)≥40
Continuous Runtime / Floodlight (h)≥55
Recharge time (h)8~10
Service life of battery (Times)≈1000
Printed Ex markingEx ib IIC T4 Gb
Head adjustment120°

Housing and installation data

Dimension (mm)193×74×115
Net weight (kg)0.35
Ingress protectionIP66

Complete operating and battery specifications

Complete operating and battery specifications
Parametervalues
Rated voltage (V)3.7
Rated wattage (W)>1
Rated capacity (mAh)5200
Light output (lm)190
Continuous Runtime / High (h)≥8
Continuous Runtime / Low (h)≥40
Continuous Runtime / Floodlight (h)≥55
Recharge time (h)8~10
Service life of battery (Times)≈1000
Dimension (mm)193×74×115
Net weight (kg)0.35

Ordering notes

  • Confirm the exact variant, temperature class and ambient conditions against the applicable model documents.
  • Hold the button for 2 seconds to select the flood beam. High and low intensity, battery indication and low-battery warning are provided.

Product documents

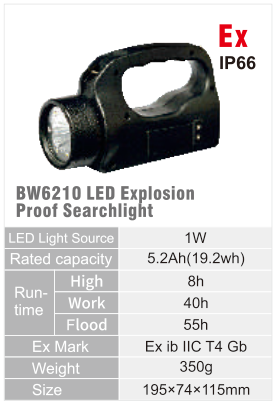

BW6210 · product datasheet

Original catalogue extract · 1 pages · PDF · 244 KB

View document

BW6210 · 2025 TORMIN Explosion Proof Lighting Catalogue

Original catalogue pages 108

View document
