HAZARDOUS AREA LIGHTING

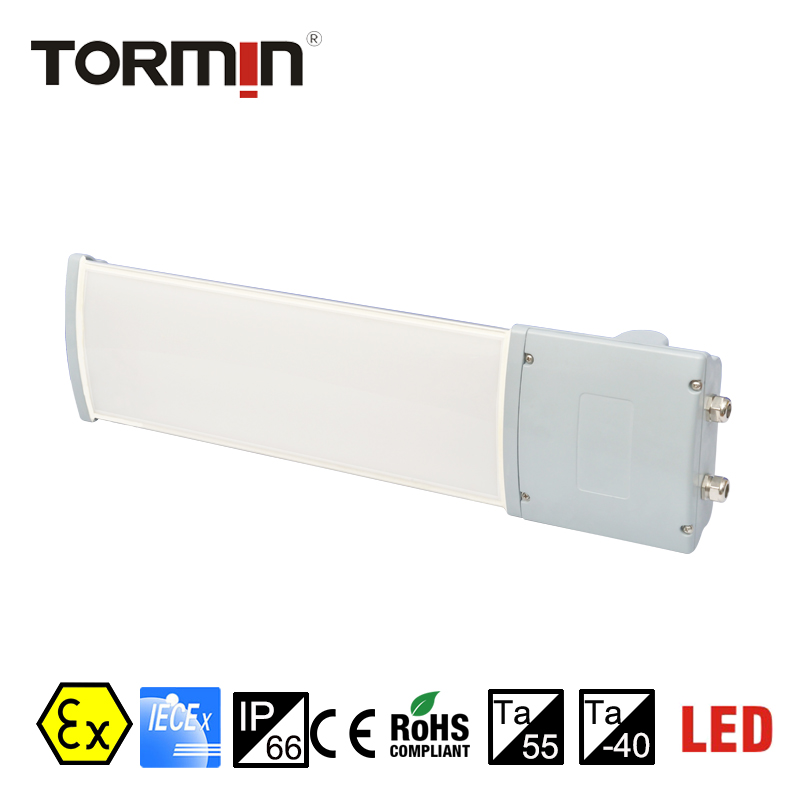

BC5402A is a linear LED fixture for installations such as production platforms, refining facilities and ships. Its housing, diffuser and separate wiring box are designed as a practical assembly for industrial lighting.
The catalogue specifies an anodized aluminium housing and 304 stainless steel exposed fasteners; 316 fasteners can be requested for offshore projects.
The translucent cover diffuses the light across the fixture’s illuminated surface.
The separate junction-box design supports wiring access and parallel connection of multiple fixtures.
Bracket, 40° side-wall, guardrail and flange arrangements are shown in the installation drawings.
Select a listed catalogue reference and add your installation requirements.
Additional installation and specification requirements are confirmed with your quotation.
| Model | Supply | Power | Dimensions | Net weight | Catalogue luminous flux | Select |
|---|---|---|---|---|---|---|
| BC5402A-L30 | 108–264 VAC | 30 W | 700 × 182 × 68 mm | 3.2 kg | 3,300 lm | |
| BC5402A-L40 | 108–264 VAC | 40 W | 700 × 182 × 68 mm | 3.4 kg | 4,400 lm | |
| BC5402A-L60 | 108–264 VAC | 60 W | 1150 × 182 × 68 mm | 4.5 kg | 6,300 lm | |
| BC5402A-L80 | 186–264 VAC | 80 W | 1150 × 182 × 68 mm | 4.7 kg | 8,400 lm |
| Rated wattage (W) | BC5402A-L30: 30W; BC5402A-L40: 40W; BC5402A-L60: 60W; BC5402A-L80: 80W |
|---|---|
| Input voltage range (V) | BC5402A-L30: 108~264VAC,50/60Hz; BC5402A-L40: 108~264VAC,50/60Hz; BC5402A-L60: 108~264VAC,50/60Hz; BC5402A-L80: 186~264VAC |
| Light output (lm) | BC5402A-L30: 3300lm; BC5402A-L40: 4400lm; BC5402A-L60: 6300lm; BC5402A-L80: 8400lm |
| CCT | 5000K |
| CRI (Ra) | 70 |
| IP class | IP66 |
| Printed Ex marking | Ex eb mb op is IIC T6/T5/T4 Gb; Ex tb op is IIIC T80°C/T95°C/T130°C Db |
| Catalogue application areas | Gas Zones 1 and 2 |
| Ambient temperature | -40~+40℃/+55℃ |
|---|---|
| Number of cable inlets | 1~2 |
| Screw Thread of cable inlets | M20*1.5 |
| Dimension (mm) | BC5402A-L30: 700×182×68; BC5402A-L40: 700×182×68; BC5402A-L60: 1150×182×68; BC5402A-L80: 1150×182×68 |
| Net Weight (kg) | BC5402A-L30: 3.2; BC5402A-L40: 3.4; BC5402A-L60: 4.5; BC5402A-L80: 4.7 |
| IECEx certificate: | IECEx SEV 19.0029X Archived copy on this site; confirm current status before specification. |
|---|

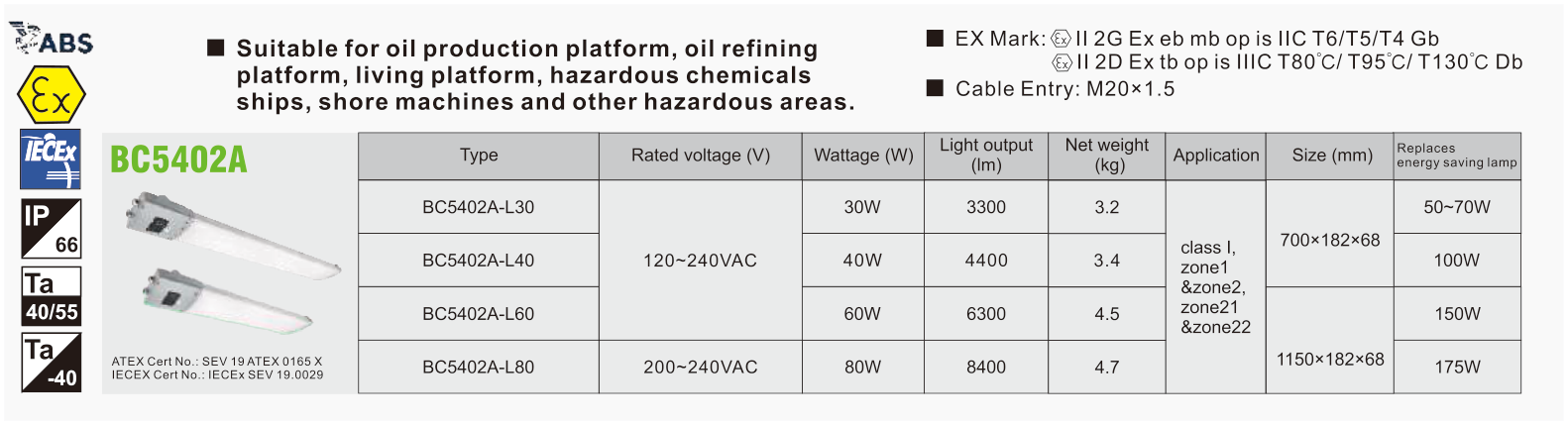

Original catalogue drawings. Dimensions are in millimetres unless stated otherwise. Open an image to inspect the full-size drawing.
| Catalogue reference | Supply family | Input voltage | Normal / rated power (W) | Catalogue output (lm) | Dimensions | Net weight (kg) |
|---|---|---|---|---|---|---|
| BC5402A-L30 | Standard AC | 108–264 VAC | 30 | 3300 | 700 × 182 × 68 mm | 3.2 |
| BC5402A-L40 | Standard AC | 108–264 VAC | 40 | 4400 | 700 × 182 × 68 mm | 3.4 |
| BC5402A-L60 | Standard AC | 108–264 VAC | 60 | 6300 | 1150 × 182 × 68 mm | 4.5 |
| BC5402A-L80 | Standard AC | 186–264 VAC | 80 | 8400 | 1150 × 182 × 68 mm | 4.7 |
| Parameter | BC5402A-L30 | BC5402A-L40 | BC5402A-L60 | BC5402A-L80 |
|---|---|---|---|---|
| Rated wattage (W) | 30W | 40W | 60W | 80W |
| Input voltage range (V) | 108~264VAC,50/60Hz | 108~264VAC,50/60Hz | 108~264VAC,50/60Hz | 186~264VAC |
| Light output (lm) | 3300lm | 4400lm | 6300lm | 8400lm |
| CCT | 5000K | 5000K | 5000K | 5000K |
| CRI (Ra) | 70 | 70 | 70 | 70 |
| IP class | IP66 | IP66 | IP66 | IP66 |
| Ambient temperature | -40~+40℃/+55℃ | -40~+40℃/+55℃ | -40~+40℃/+55℃ | -40~+40℃/+55℃ |
| Number of cable inlets | 1~2 | 1~2 | 1~2 | 1~2 |
| Screw Thread of cable inlets | M20*1.5 | M20*1.5 | M20*1.5 | M20*1.5 |
| Dimension (mm) | 700×182×68 | 700×182×68 | 1150×182×68 | 1150×182×68 |
| Net Weight (kg) | 3.2 | 3.4 | 4.5 | 4.7 |
| Code field | Catalogue choices |
|---|---|
| Model prefix | BC5402A-L |
| Rated wattage | 30 / 40 / 60 / 80 W |
| Input-voltage code | 120 V / 240 V |
| CCT code | 3000 K — 30; 4000 K — 40; 5000 K — 50 |
| CRI code | R7 — Ra70; R8 — Ra80 |
| Mounting code | S1 — Bracket; S2 — Side wall; S3 — Guardrail; S4 Fence mounted (source drawing calls this flange mounting) |
| Cable inlet code | E1 — One inlet; E2 — Two inlets |
| Printed example | BC5402A-L40W120/240V50R7S1E1 |
