Two emergency arrangements
The catalogue pairs2×10W normal lighting with10W emergency output, or2×20W normal lighting with20W emergency output.
HAZARDOUS AREA LIGHTING
Two-tube LED lighting combined with a separate BXP01 emergency box, with emergency power and duration matched to the tube arrangement.

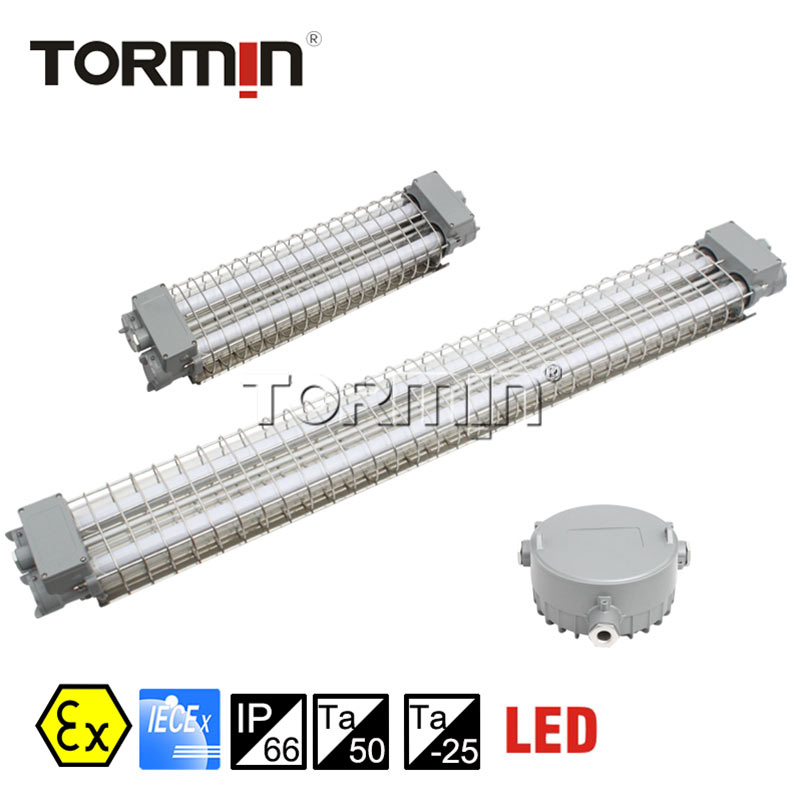

BC5401 combines two T8 LED tubes with the BXP01 emergency box for normal and emergency illumination around industrial facilities.
The catalogue pairs2×10W normal lighting with10W emergency output, or2×20W normal lighting with20W emergency output.
The emergency supply has its own enclosure and mounting bracket, with component dimensions shown separately.

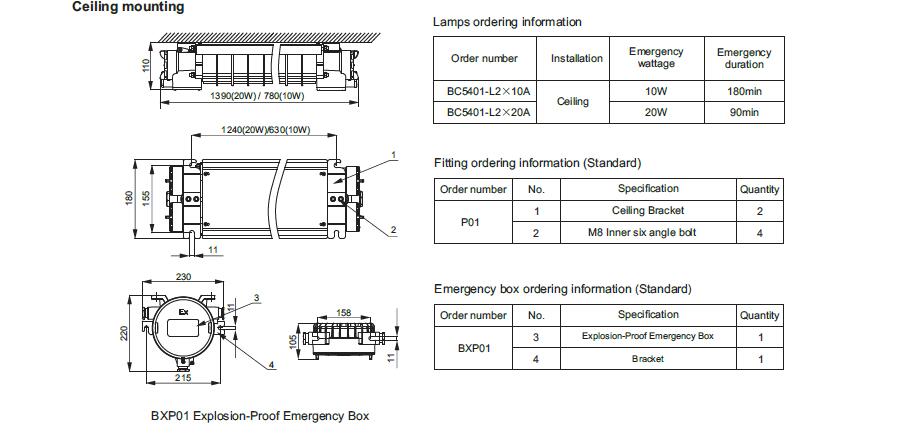

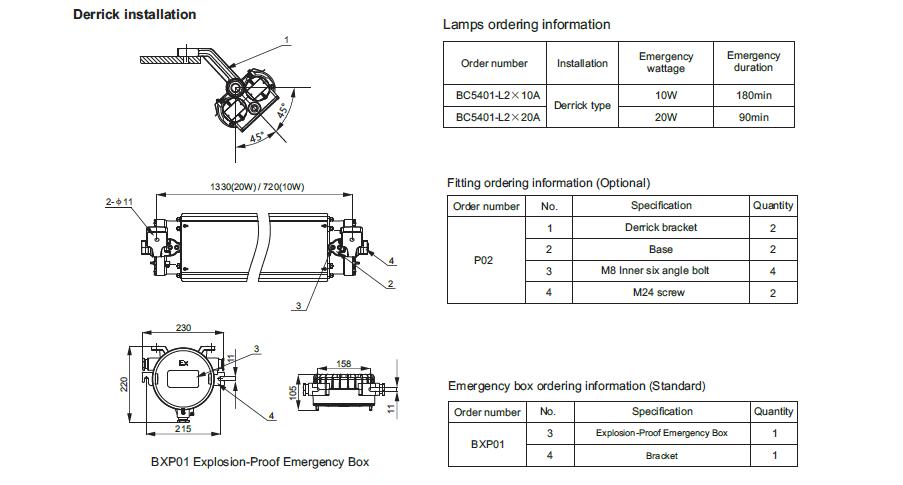

Terminals at both ends support parallel wiring, with ceiling, derrick, side-wall, rod and pole installation drawings.
Select a listed catalogue reference and add your installation requirements.
Additional installation and specification requirements are confirmed with your quotation.
| Model | Supply | Power | Dimensions | Net weight | Lamp arrangement | Mounting options | Emergency power | Emergency duration | Select |
|---|---|---|---|---|---|---|---|---|---|
| BC5401-L2×10A | 90–264 VAC | 20 W | 780×180×110mm (lamp);230×220×105mm (BXP01) | 6.6 kg | 2×10W T8 | Ceiling / Derrick / Side wall / Rod | 10 W | >140 min | |
| BC5401-L2×20A | 90–264 VAC | 40 W | 1390×180×110mm (lamp);230×220×105mm (BXP01) | 10.7 kg | 2×20W T8 | Ceiling / Derrick / Side wall / Rod | 20 W | >70 min | |
| BC5401-L2×10B | 90–264 VAC | 20 W | 780×180×110mm (lamp);230×220×105mm (BXP01) | 6.6 kg | 2×10W T8 | Pole | 10 W | >140 min | |
| BC5401-L2×20B | 90–264 VAC | 40 W | 1390×180×110mm (lamp);230×220×105mm (BXP01) | 10.7 kg | 2×20W T8 | Pole | 20 W | >70 min |
| Rated wattage (W) | 2×20W configuration: 2×20W; 2×10W configuration: 2×10W |
|---|---|
| Emergency wattage (W) | 2×20W configuration: 20W; 2×10W configuration: 10W |
| Input voltage (V) | 90~264VAC |
| Rated frequency | 50Hz / 60Hz |
| Light source | LED |
| Light efficiency (lm/W) | ≥90 |
| CRI | 80 |
| Life time (h) | 50, 000 |
| CCT | 5000K |
| Emergency duration (min) | 2×20W configuration: >70; 2×10W configuration: >140 |
| Time of charging (h) | 6 |
| Rated capacity | 2.6Ah/14.8V |
| Printed Ex marking — BC5401 luminaire | Ex db eb IIC T6 Gb; Ex tb IIIC T80°C Db |
| Printed Ex marking — BXP01 box | Ex db IIC T6 Gb; Ex tb IIIC T80°C Db |
| Catalogue application areas | Gas Zones 1 and 2; dust Zones 21 and 22. Confirm the applicable model marking and installation conditions. |
| Leading-in cable diameter | φ10mm~φ14mm |
|---|---|
| Cable entry | M20×1.5, M25×1.5, NPT3/4", NPT1/2", G3/4" |
| Dimension (mm) | (2×20W) 1390×180×110; (2×10W) 780×180×110; (Emergency box) 230×220×105 |
| Net weight (kg) | 2×20W configuration: 10.7; 2×10W configuration: 6.6; (Emergency box) 2.8 |

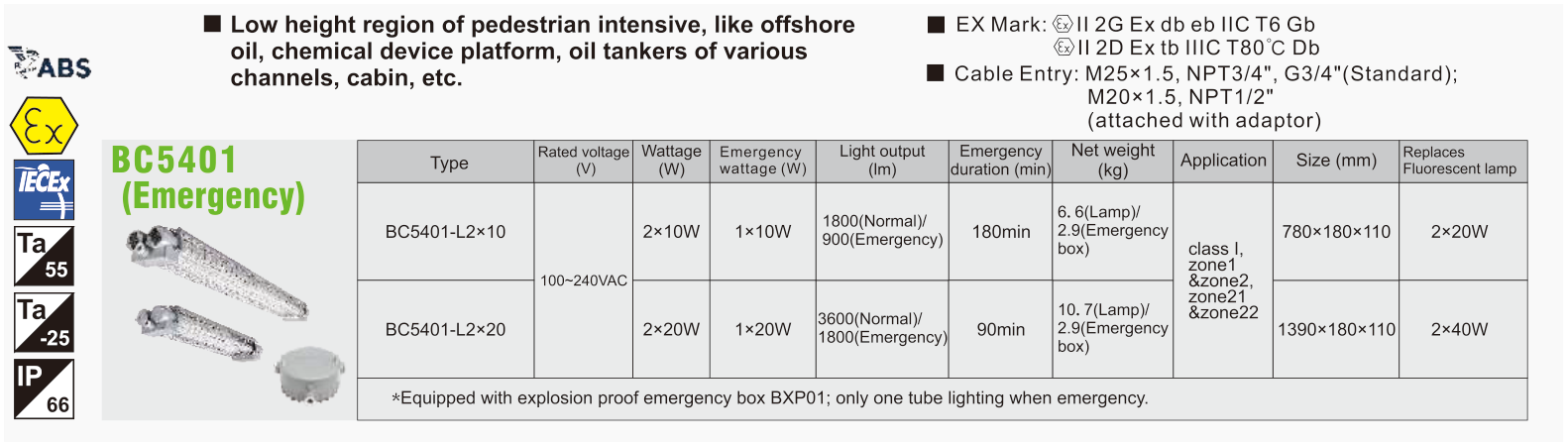

Original catalogue drawings. Dimensions are in millimetres unless stated otherwise. Open an image to inspect the full-size drawing.
| Catalogue reference | Supply family | Input voltage | Normal / rated power (W) | Emergency power (W) | Emergency duration (min) | Dimensions | Net weight (kg) |
|---|---|---|---|---|---|---|---|
| BC5401-L2×10A | Standard AC | 90–264 VAC | 20 | 10 | >140 | 780×180×110mm (lamp);230×220×105mm (BXP01) | 6.6 |
| BC5401-L2×20A | Standard AC | 90–264 VAC | 40 | 20 | >70 | 1390×180×110mm (lamp);230×220×105mm (BXP01) | 10.7 |
| BC5401-L2×10B | Standard AC | 90–264 VAC | 20 | 10 | >140 | 780×180×110mm (lamp);230×220×105mm (BXP01) | 6.6 |
| BC5401-L2×20B | Standard AC | 90–264 VAC | 40 | 20 | >70 | 1390×180×110mm (lamp);230×220×105mm (BXP01) | 10.7 |
| Parameter | 2×20W configuration | 2×10W configuration |
|---|---|---|
| Rated wattage (W) | 2×20W | 2×10W |
| Emergency wattage (W) | 20W | 10W |
| Input voltage (V) | 90~264VAC | 90~264VAC |
| Rated frequency | 50Hz / 60Hz | 50Hz / 60Hz |
| Light source | LED | LED |
| Light efficiency (lm/W) | ≥90 | ≥90 |
| CRI | 80 | 80 |
| Life time (h) | 50, 000 | 50, 000 |
| CCT | 5000K | 5000K |
| Emergency duration (min) | >70 | >140 |
| Time of charging (h) | 6 | 6 |
| Rated capacity | 2.6Ah/14.8V | 2.6Ah/14.8V |
| Leading-in cable diameter | φ10mm~φ14mm | φ10mm~φ14mm |
| Cable entry | M20×1.5, M25×1.5, NPT3/4", NPT1/2", G3/4" | M20×1.5, M25×1.5, NPT3/4", NPT1/2", G3/4" |
| Dimension (mm) | (2×20W) 1390×180×110 | (2×20W) 1390×180×110 |
| Dimension (mm) | (2×10W) 780×180×110 | (2×10W) 780×180×110 |
| Dimension (mm) | (Emergency box) 230×220×105 | (Emergency box) 230×220×105 |
| Net weight (kg) | 10.7 | 6.6 |
| Net weight (kg) | (Emergency box) 2.8 | (Emergency box) 2.8 |
| Kit / reference | Item | Description | Quantity | Notes |
|---|---|---|---|---|
| P01 | 1 | Ceiling bracket | 2 | |
| P01 | 2 | M8 hex-socket bolt | 4 | |
| BXP01 | 3 | Emergency box | 1 | |
| BXP01 | 4 | Bracket | 1 |
| Kit / reference | Item | Description | Quantity | Notes |
|---|---|---|---|---|
| P02 | 1 | Derrick bracket | 2 | |
| P02 | 2 | Base | 2 | |
| P02 | 3 | M8 hex-socket bolt | 4 | |
| P02 | 4 | M24 screw | 2 | |
| BXP01 | 3 | Emergency box | 1 | |
| BXP01 | 4 | Bracket | 1 |
| Kit / reference | Item | Description | Quantity | Notes |
|---|---|---|---|---|
| P03 | 1 | Side-wall bracket | 2 | |
| P03 | 2 | M10 hex-socket bolt | 4 | |
| BXP01 | 3 | Emergency box | 1 | |
| BXP01 | 4 | Bracket | 1 |
| Kit / reference | Item | Description | Quantity | Notes |
|---|---|---|---|---|
| P04 | 1 | Upper hoop | 2 | |
| P04 | 2 | Under hoop | 2 | |
| P04 | 3 | DN32 pole | 1 | |
| P04 | 4 | U-tube clip | 2 | |
| BXP01 | 5 | Emergency box | 1 | |
| BXP01 | 6 | Bracket | 1 |
| Kit / reference | Item | Description | Quantity | Notes |
|---|---|---|---|---|
| P05 | 1 | Pole mounting bracket | 1 | |
| P05 | 2 | M8 screw, 19 cm | 1 | |
| P02 | 3 | G¾″ connector, male–male | 1 | |
| BXP01 | 4 | Emergency box | 1 |
Original catalogue curves. Read each curve with its listed model, beam and supply. Open an image to inspect the full-size plot.

Original catalogue extract · 3 pages · PDF · 348 KB
View documentOriginal catalogue pages 82, 83, 84
