EXPLOSION PROOF ELECTRICAL EQUIPMENT
BXP02 is a separate emergency power box for compatible industrial luminaires. The A/B reference determines the normal load, emergency output and light-source voltage range.
Normal load, emergency wattage, light-source voltage and duration are specified together by catalogue reference.
The supplied bracket supports suspended or wall installation.
The aluminium-alloy housing has an electrostatically sprayed surface, with 304 stainless steel standard parts.
Select a listed catalogue reference and add your installation requirements.
Additional installation and specification requirements are confirmed with your quotation.
| Model | Emergency power | Emergency duration | Normal lighting power | Lamp voltage | Battery voltage | Maximum normal load | Select |
|---|---|---|---|---|---|---|---|
| BXP02A-L50-L5 | 5 W | ≥180 min | 50 W | 27–54 V DC | 7.4 V | — | |
| BXP02A-L40-L15/25 | 15 / 25 W | ≥180 / ≥90 min | 40 W | 30–40 V DC | 14.8 V | — | |
| BXP02B-L5/10 | 5 / 10 W | ≥180 / ≥90 min | — | 3–42 V DC | 7.4 V | 200 W | |
| BXP02B-L15/25 | 15 / 25 W | ≥180 / ≥90 min | — | 36 / 54 V DC | 14.8 V | 200 W |
| Input Voltage | AC 100~240V |
|---|---|
| Illuminating Wattage | BXP02A-L50-L5: 50W; BXP02A-L40-L15/25: 40W; BXP02B-L5/10: Max.200W; BXP02B-L15/25: Max.200W |
| Emergency Wattage | BXP02A-L50-L5: 5W; BXP02A-L40-L15/25: 15/25W; BXP02B-L5/10: 5/10W; BXP02B-L15/25: 15/25W |
| Adaptive Light Source Voltage | BXP02A-L50-L5: DC 27~54V; BXP02A-L40-L15/25: DC 30~40V; BXP02B-L5/10: DC 3~42V; BXP02B-L15/25: DC 36V/DC 54V |
| Emergency Duration | BXP02A-L50-L5: ≥180min; BXP02A-L40-L15/25: ≥180min/≥90min; BXP02B-L5/10: ≥180min/≥90min; BXP02B-L15/25: ≥180min/≥90min |
| Battery Voltage | BXP02A-L50-L5: 7.4V; BXP02A-L40-L15/25: 14.8V; BXP02B-L5/10: 7.4V; BXP02B-L15/25: 14.8V |
| Rated Capacity | 2600mAh |
| Wire cross- sectional area | 1.0~2.5mm² |
| Printed Ex marking | Ex db IIC T6 Gb; Ex tb IIIC T80°C Db |
| Catalogue application areas | Gas Zones 1 and 2; dust Zones 21 and 22. Confirm the applicable model marking and installation conditions. |
| Protection Grade | IP66 |
|---|---|
| Ambient Temperature | -25℃~+55℃ |
| Lead-in Cable Diameter | φ9~φ10mm/φ11~φ12mm/φ13~φ14mm |
| Dimension | 240×230×105.5mm |
| Mounting Angle | 360° |
| Surface Maximum Temperature | <80℃ |
| Net Weight | 2.5Kg |
| ATEX certificate: | CNEX 23 ATEX 0025 X Archived copy on this site; confirm current status before specification. |
|---|---|
| IECEx certificate: | IECEx CNEX 23.0023X Archived copy on this site; confirm current status before specification. |

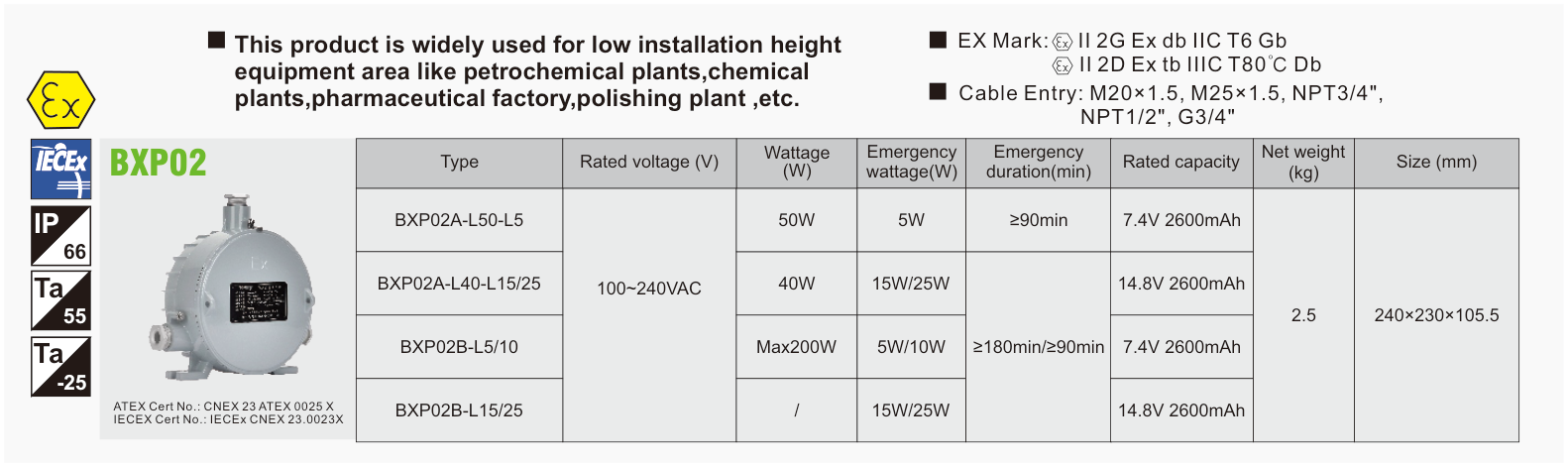

Original catalogue drawings. Dimensions are in millimetres unless stated otherwise. Open an image to inspect the full-size drawing.
| Catalogue reference | Emergency power (W) | Emergency duration (min) | Normal load (W) | Maximum normal load (W) | Light-source voltage | Battery voltage (V) |
|---|---|---|---|---|---|---|
| BXP02A-L50-L5 | 5 | ≥180 | 50 | — | 27–54 V DC | 7.4 |
| BXP02A-L40-L15/25 | 15 / 25 | ≥180 / ≥90 | 40 | — | 30–40 V DC | 14.8 |
| BXP02B-L5/10 | 5 / 10 | ≥180 / ≥90 | — | 200 | 3–42 V DC | 7.4 |
| BXP02B-L15/25 | 15 / 25 | ≥180 / ≥90 | — | 200 | 36 / 54 V DC | 14.8 |
| Parameter | BXP02A-L50-L5 | BXP02A-L40-L15/25 | BXP02B-L5/10 | BXP02B-L15/25 |
|---|---|---|---|---|
| Input Voltage | AC 100~240V | AC 100~240V | AC 100~240V | AC 100~240V |
| Illuminating Wattage | 50W | 40W | Max.200W | Max.200W |
| Emergency Wattage | 5W | 15/25W | 5/10W | 15/25W |
| Adaptive Light Source Voltage | DC 27~54V | DC 30~40V | DC 3~42V | DC 36V/DC 54V |
| Emergency Duration | ≥180min | ≥180min/≥90min | ≥180min/≥90min | ≥180min/≥90min |
| Battery Voltage | 7.4V | 14.8V | 7.4V | 14.8V |
| Rated Capacity | 2600mAh | 2600mAh | 2600mAh | 2600mAh |
| Protection Grade | IP66 | IP66 | IP66 | IP66 |
| Ambient Temperature | -25℃~+55℃ | -25℃~+55℃ | -25℃~+55℃ | -25℃~+55℃ |
| Lead-in Cable Diameter | φ9~φ10mm/φ11~φ12mm/φ13~φ14mm | φ9~φ10mm/φ11~φ12mm/φ13~φ14mm | φ9~φ10mm/φ11~φ12mm/φ13~φ14mm | φ9~φ10mm/φ11~φ12mm/φ13~φ14mm |
| Dimension | 240×230×105.5mm | 240×230×105.5mm | 240×230×105.5mm | 240×230×105.5mm |
| Mounting Angle | 360° | 360° | 360° | 360° |
| Surface Maximum Temperature | <80℃ | <80℃ | <80℃ | <80℃ |
| Wire cross- sectional area | 1.0~2.5mm² | 1.0~2.5mm² | 1.0~2.5mm² | 1.0~2.5mm² |
| Net Weight | 2.5Kg | 2.5Kg | 2.5Kg | 2.5Kg |
| Reference | Operating arrangement | Normal-lighting wattage | Emergency wattage |
|---|---|---|---|
| BXP02A-L50-L5 | Illuminating + emergency | 50 W | 5 W |
| BXP02A-L40-L15/25 | Illuminating + emergency | 40 W | 15 / 25 W |
| BXP02B-L5/10 | Emergency only | — | 5 / 10 W |
| BXP02B-L15/25 | Emergency only | — | 15 / 25 W |
