Product configurations & catalogue specifications
Original TORMIN catalogue reference. Values apply to the individual model and configuration shown; please confirm the ordering code and applicable documentation with our team.

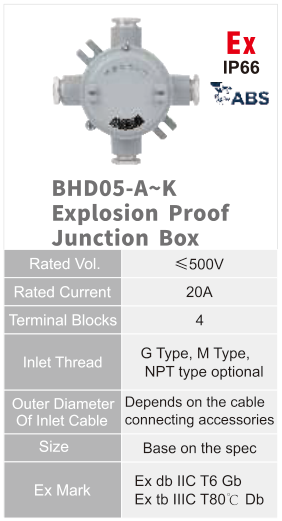

BHD05-A–K
| Product type | Explosion-Proof Junction Box |
|---|---|
| Catalogue location | PDF page 8 |
| Rated voltage | ≤ 500 V |
| Rated current | 20 A |
| Terminal blocks | 4 |
| Entry thread options | G, M and NPT types; confirm the selected variant |
| Ingress protection | IP66 |
