Product configurations & catalogue specifications
Original TORMIN catalogue reference. Values apply to the individual model and configuration shown; please confirm the ordering code and applicable documentation with our team.

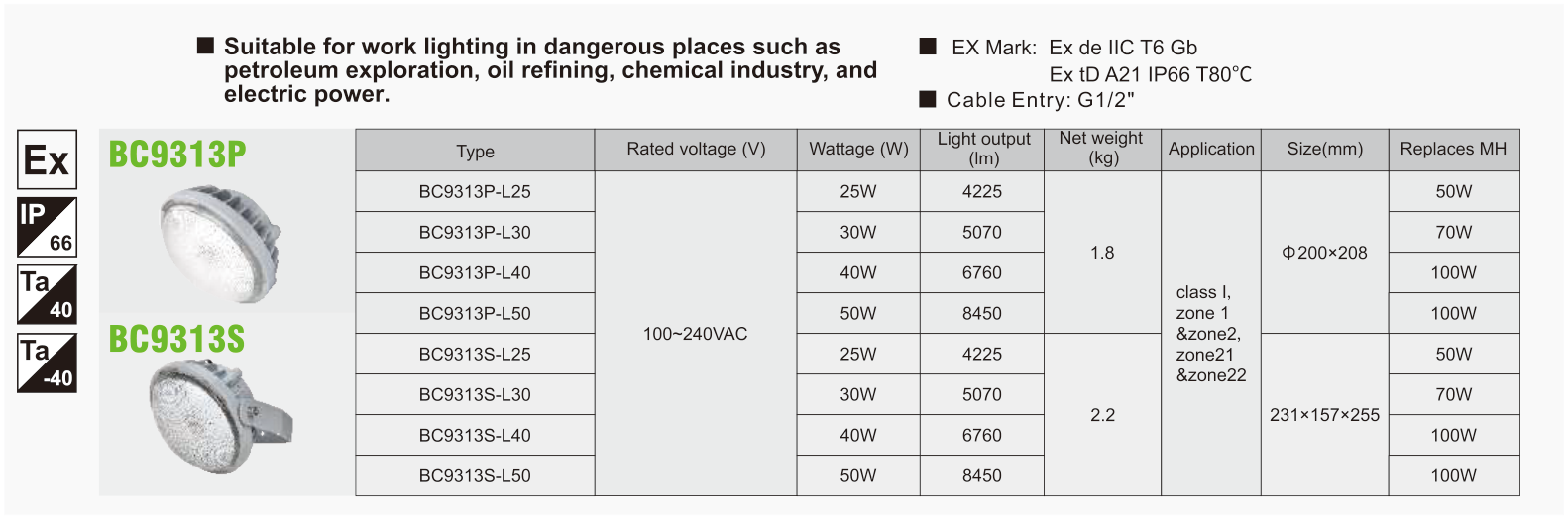

BC9313P / BC9313S
| Product type | Explosion-Proof Area Light |
|---|---|
| Power options | 25 / 30 / 40 / 50 W |
| Catalogue location | PDF page 5 |
| Rated voltage | 100–240 V AC |
| Net weight by variant | BC9313P: 1.8 kg; BC9313S: 2.2 kg |
| Dimensions by variant | BC9313P: Ø200 × 208 mm; BC9313S: 231 × 157 × 255 mm |
| Ingress protection | IP66 |
