BC9311BP / BC9311BS Explosion-Proof Area Light — product image

BC9311BP / BC9311BS

BC9311BP / BC9311BS Explosion-Proof Area Light

BC9311BP / BC9311BS Explosion-Proof Area Light. Catalogue power options: 30 / 40 / 50 / 60 W.

Compare the documented configuration below and send the model reference with your project requirements.

Model: BC9311BP / BC9311BS
Wattage: 30 / 40 / 50 / 60 W

Request a Product Quote

Confirm the configuration and applicable documentation with our team.

Product configurations & catalogue specifications

Original TORMIN catalogue reference. Values apply to the individual model and configuration shown; please confirm the ordering code and applicable documentation with our team.

BC9311BP / BC9311BS

BC9311BP / BC9311BS — catalogue summary
Product type	Explosion-Proof Area Light
Power options	30 / 40 / 50 / 60 W
Catalogue location	PDF page 5
Rated voltage	100–240 V AC
Net weight by variant	BC9311BP: 2.2 kg; BC9311BS: 3 kg
Dimensions by variant	BC9311BP: Ø230 × 167 mm; BC9311BS: 270 × 250 × 167 mm

Configuration note: The catalogue Ex marking and application-zone field are inconsistent. Applicable hazardous-area classification must be confirmed against the model certificate.

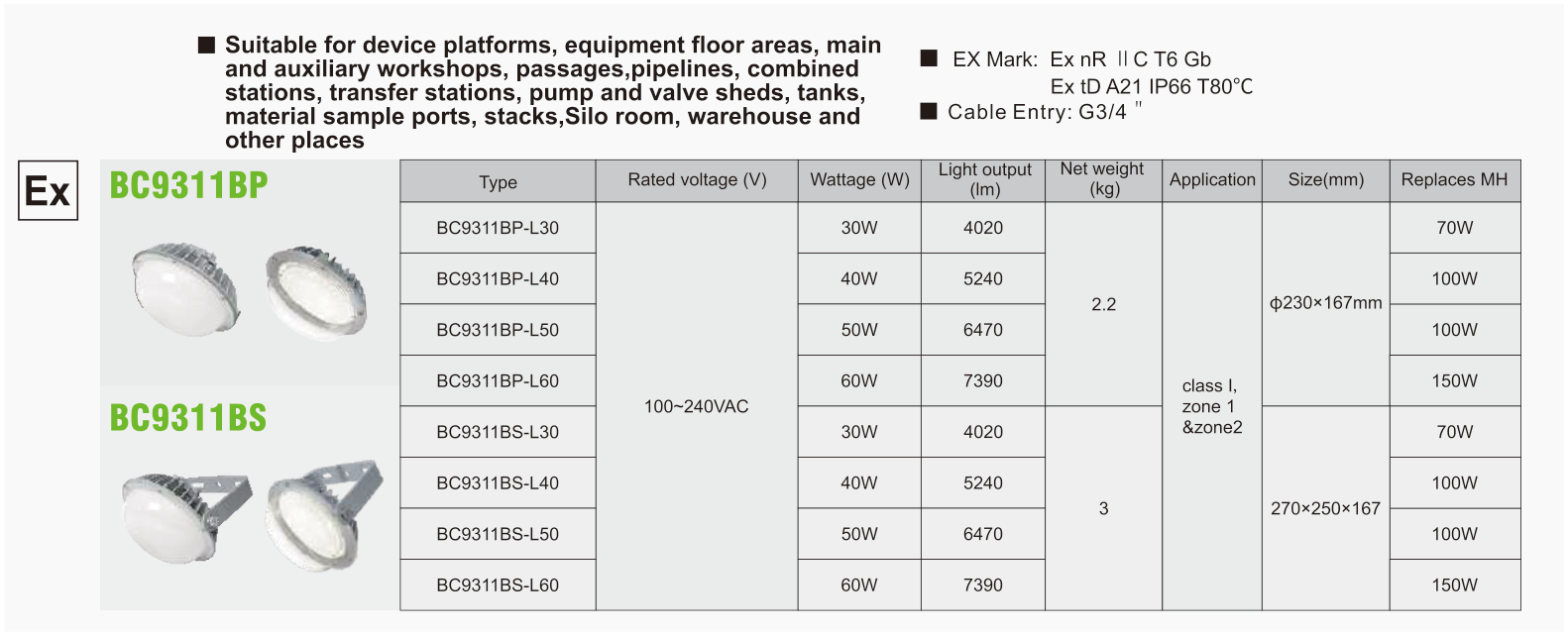

BC9311BP / BC9311BS original catalogue specification table; open the full-size image or download the catalogue for configuration details. — Original catalogue extract · BC9311BP / BC9311BS · View full-size specifications

Download TORMIN Product Catalogue

Compare high bay & low bay lights · Product catalogues · ATEX model documentation

Need the right industrial lighting specification?

Send the hazardous area, mounting height, target illuminance and project schedule. Our team will help confirm the fit.

Ask a TORMIN Engineer
