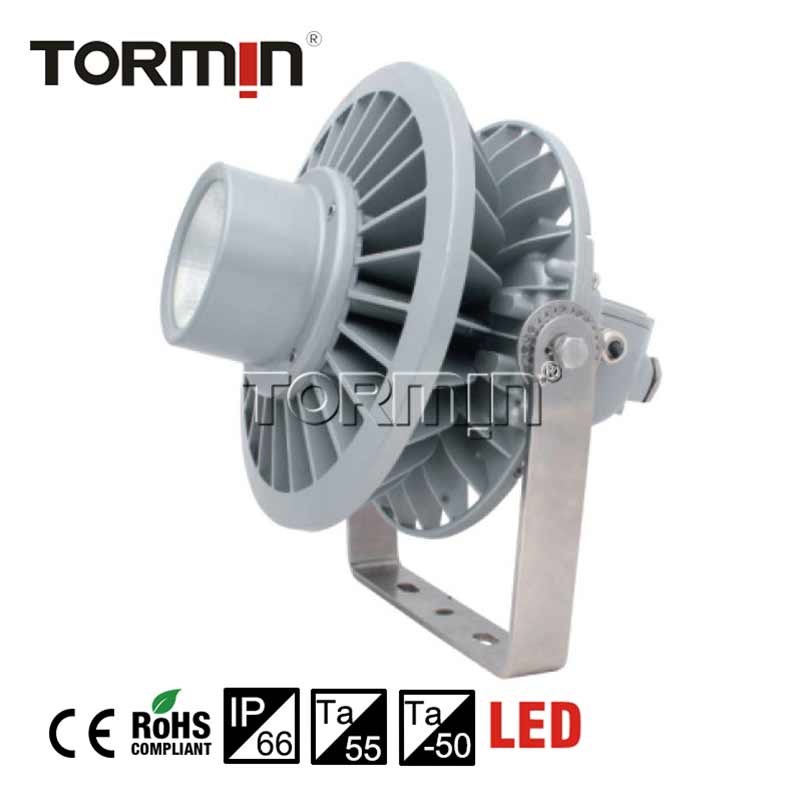

ZY8605S LED Floodlight — product image

INDUSTRIAL LIGHTING

ZY8605S LED Floodlight

This ZY8605S version is intended for longer-distance illumination of platform equipment, cargo terminals and stockyards.

Power options by configuration
100–240 W
Beam options
18° / 25°
Input voltage
90–305 VAC
CRI
Ra70; Ra80 optional

Focused lighting for terminals and stockyards

Focused-light references

The source lists this cast-light version separately from the broader-distribution bracket light.

Service access

An independent wiring chamber provides access to cable terminations.

Protected metal assembly

A surface-treated aluminium body uses stainless exposed fasteners and a finned thermal structure.

Choose your configuration

Select a listed catalogue reference and add your installation requirements.

Additional installation and specification requirements are confirmed with your quotation.

Catalogue configurations

ModelSupplyPowerBeam distributionCatalogue luminous fluxSelect
ZY8605S-L100-18°90~305VAC100 W18°10,000 lm
ZY8605S-L120-18°90~305VAC120 W18°11,500 lm
ZY8605S-L150-18°90~305VAC150 W18°14,600 lm
ZY8605S-L180-18°90~305VAC180 W18°15,500 lm
ZY8605S-L200-25°90~305VAC200 W25°20,300 lm
ZY8605S-L240-25°90~305VAC240 W25°23,500 lm

Technical specifications

Electrical and performance data

Input voltage90–305 VAC
Frequency50/60 Hz
Light sourceLED
Light source lifetime50,000 h
CRIRa70; Ra80 optional
CCT5000 K; 3000 / 4000 K optional

Housing and installation data

Cable diameterØ6–Ø12 mm
Dimensions341 × 330 × 350 mm
Net weight8 kg
Terminal capacityMulti-core ≤4 mm²; single-core ≤6 mm²

Dimensions and mounting

Original catalogue drawings. Dimensions are in millimetres unless stated otherwise. Open an image to inspect the full-size drawing.

ZY8605S Cast light original dimension and mounting drawing
ZY8605S Cast light · Drawing of dimension

Mounting accessories — catalogue ordering information

Mounting accessories — catalogue ordering information
Order numberItemSpecificationQuantityApplication / note
P071M20 waterproof connector1Suitable for Ø8–Ø12 mm cable
P072Pole mounting bracket1Suitable for DN32 / DN40 pole

Catalogue ordering configurations

Catalogue ordering configurations
Catalogue referencePower (W)BeamInput voltageCatalogue output (lm)Equivalent to
ZY8605S-L100-18°10018°90~305VAC10000250W
ZY8605S-L120-18°12018°90~305VAC11500>250W
ZY8605S-L150-18°15018°90~305VAC14600400W
ZY8605S-L180-18°18018°90~305VAC15500>400W
ZY8605S-L200-25°20025°90~305VAC20300>400W
ZY8605S-L240-25°24025°90~305VAC23500400W / 600W

Features and operating notes

  • The catalogue lists 1–10 VDC, PWM, carrier and DALI control functions. State the required control interface for quotation.
  • An independent wiring compartment is provided for installation and maintenance.

Product documents

ZY8605S Cast light · product datasheet

Original catalogue extract · 1 pages · PDF · 350 KB

View document

ZY8605S Cast light · 2025 TORMIN Industrial Lighting Catalogue

Original catalogue pages 35

View document
