A/B operating arrangements
A provides normal lighting with emergency operation; B provides emergency-only lighting.
INDUSTRIAL LIGHTING

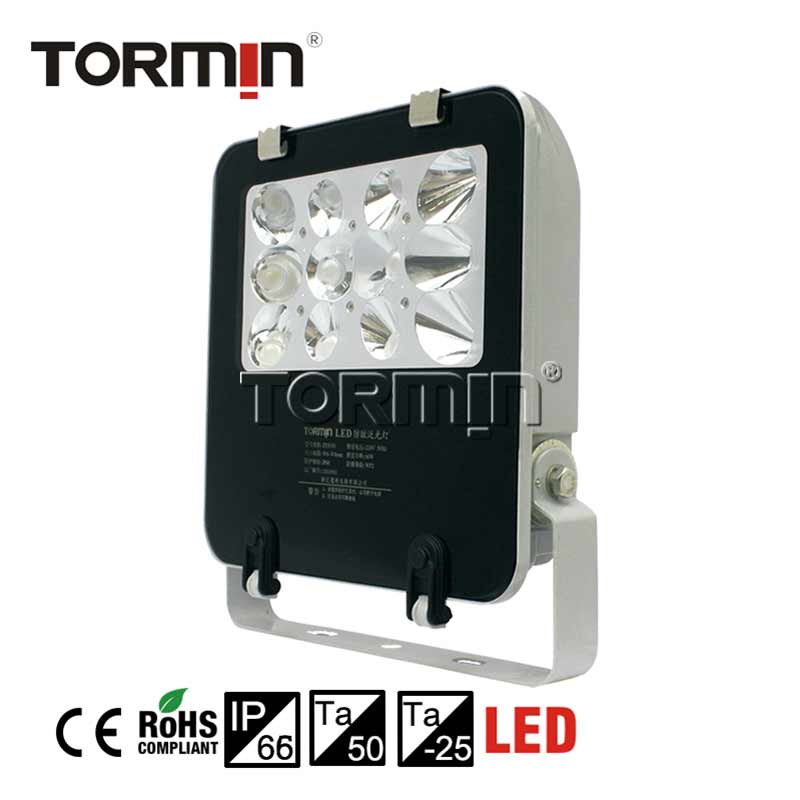

ZY8101A and ZY8101B provide emergency lighting for factories, stations, workshops, large storage areas and tunnels.
A provides normal lighting with emergency operation; B provides emergency-only lighting.
The design combines distributed sources, a radiator and a separate power structure.
The bracket locks the selected lighting direction, within an aluminium body with stainless exposed fasteners.
Select a listed catalogue reference and add your installation requirements.
Additional installation and specification requirements are confirmed with your quotation.

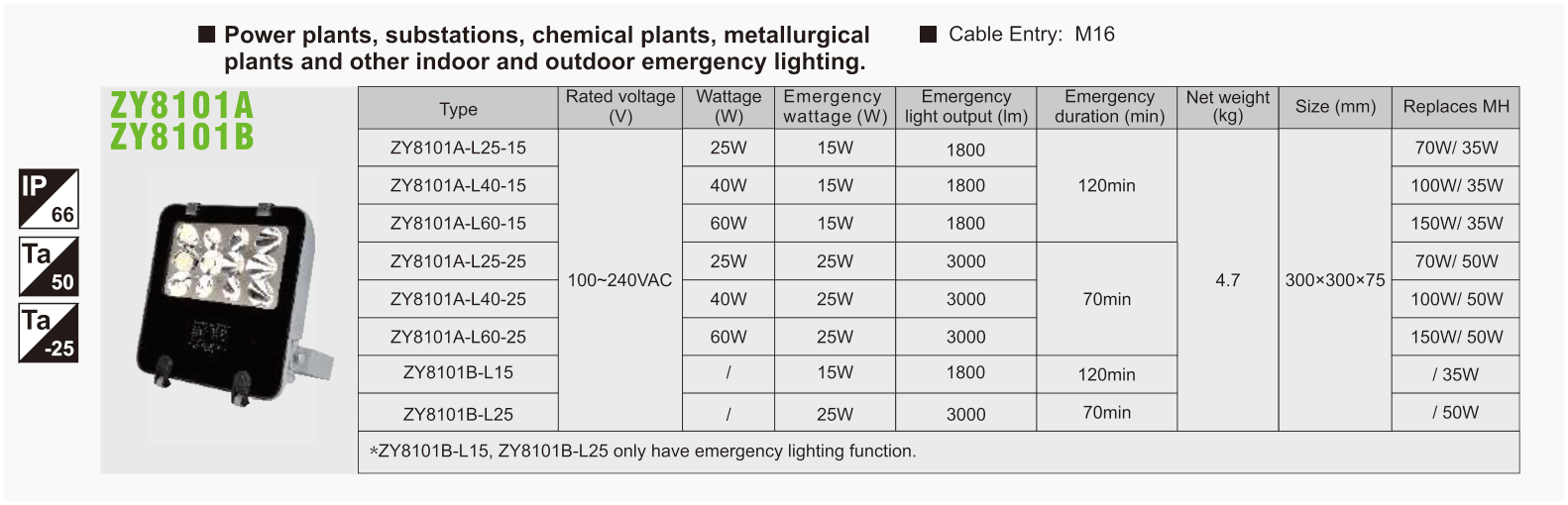

| Model | Supply | Power | Emergency duration | Emergency power | Catalogue mounting height (m) | Emergency luminous flux | Power profile | Select |
|---|---|---|---|---|---|---|---|---|
| ZY8101A-L25-15 | 90–264 VAC | 25 W | 120 min | 15 W | 2–5 m | 1800 lm | — | |
| ZY8101A-L40-15 | 90–264 VAC | 40 W | 120 min | 15 W | 2–5 m | 1800 lm | — | |
| ZY8101A-L60-15 | 90–264 VAC | 60 W | 120 min | 15 W | 3–8 m | 1800 lm | — | |
| ZY8101B-15 | 90–264 VAC | — | 120 min | 15 W | 2–5 m | 1800 lm | 15 W emergency only | |
| ZY8101A-L25-25 | 90–264 VAC | 25 W | 70 min | 25 W | 2–5 m | 3000 lm | — | |
| ZY8101A-L40-25 | 90–264 VAC | 40 W | 70 min | 25 W | 2–5 m | 3000 lm | — | |
| ZY8101A-L60-25 | 90–264 VAC | 60 W | 70 min | 25 W | 3–8 m | 3000 lm | — | |
| ZY8101B-25 | 90–264 VAC | — | 70 min | 25 W | 2–5 m | 3000 lm | 25 W emergency only |
| Input voltage (V) | 90~264VAC |
|---|---|
| Life time (h) | 100,000 |
| Rated frequency | 50Hz / 60Hz |
| Time of charging (h) | >6 |
| Rated capacity | 2.6Ah/14.8V |
| Cable entry | G3/4″ |
|---|---|
| Leading-in cable diameter | φ6mm~φ8mm |
| Dimension (mm) | 326×326×75 |
| Net weight (kg) | 5.5 |
Original catalogue drawings. Dimensions are in millimetres unless stated otherwise. Open an image to inspect the full-size drawing.
| Catalogue reference | Power (W) | Input voltage | Emergency power | Emergency duration | Emergency output (lm) | Mounting height | Equivalent to |
|---|---|---|---|---|---|---|---|
| ZY8101A-L25-15 | 25 | 90–264 VAC | 15 W | 120 min | 1800 | 2–5 m | 70W/35W |
| ZY8101A-L40-15 | 40 | 90–264 VAC | 15 W | 120 min | 1800 | 2–5 m | 100W/35W |
| ZY8101A-L60-15 | 60 | 90–264 VAC | 15 W | 120 min | 1800 | 3–8 m | 150W/35W |
| ZY8101B-15 | — (emergency only) | 90–264 VAC | 15 W | 120 min | 1800 | 2–5 m | |
| ZY8101A-L25-25 | 25 | 90–264 VAC | 25 W | 70 min | 3000 | 2–5 m | 70W/70W |
| ZY8101A-L40-25 | 40 | 90–264 VAC | 25 W | 70 min | 3000 | 2–5 m | 100W/70W |
| ZY8101A-L60-25 | 60 | 90–264 VAC | 25 W | 70 min | 3000 | 3–8 m | 150W/70W |
| ZY8101B-25 | — (emergency only) | 90–264 VAC | 25 W | 70 min | 3000 | 2–5 m |
