Optics matched to the reference
The 18° and 25° versions have specific listed power combinations, rather than every power being available with both optics.
HAZARDOUS AREA LIGHTING

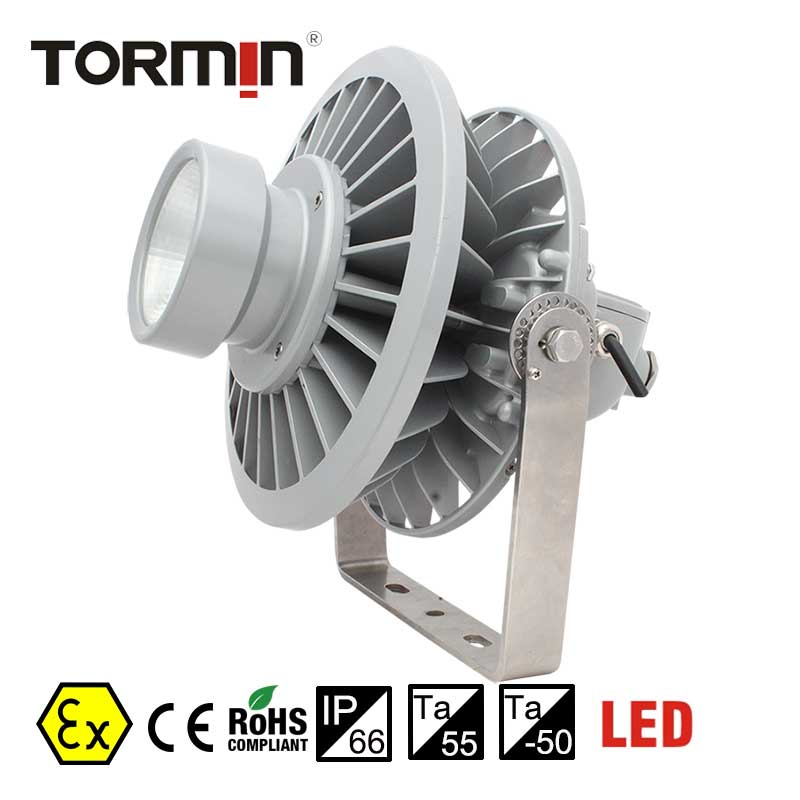

The BC9307S spotlight family is intended for focused illumination around industrial facilities. The catalogue assigns 18° optics to 100–180 W references and 25° optics to 200–240 W references.
The 18° and 25° versions have specific listed power combinations, rather than every power being available with both optics.
This version has its own housing dimensions and weight, distinct from the standard BC9307S floodlight.
Seat, side-wall and pole mounting arrangements are shown for project planning.
An independent wiring chamber and weld-free light-source replacement provide maintenance access.
Select a listed catalogue reference and add your installation requirements.
Additional installation and specification requirements are confirmed with your quotation.
| Model | Supply | Power | Beam distribution | Catalogue luminous flux | Select |
|---|---|---|---|---|---|
| BC9307S-L100-18° | 90–264 VAC | 100 W | 18° | 10,000 lm | |
| BC9307S-L120-18° | 90–264 VAC | 120 W | 18° | 11,500 lm | |
| BC9307S-L150-18° | 90–264 VAC | 150 W | 18° | 14,600 lm | |
| BC9307S-L180-18° | 90–264 VAC | 180 W | 18° | 15,500 lm | |
| BC9307S-L200-25° | 90–264 VAC | 200 W | 25° | 20,300 lm | |
| BC9307S-L240-25° | 90–264 VAC | 240 W | 25° | 23,500 lm |
| Input voltage (V) | 90~264VAC |
|---|---|
| Rated frequency | 50Hz / 60Hz |
| CRI (Ra) | 70 (80 optional) |
| Life time (h) | 50,000 |
| CCT | 5000K(3000K/4000K optional) |
| Printed Ex marking | Ex db eb IIC T4/T3 Gb; Ex tb IIIC T130°C/T195°C Db |
| Ambient options printed in catalogue | −50 to +40 / +55 °C; exact variant and temperature class to be confirmed |
| Catalogue application areas | Gas Zones 1 and 2; dust Zones 21 and 22. Confirm the applicable model marking and installation conditions. |
| Cable entry | M20×1.5, NPT1/2" |
|---|---|
| Terminals | Multi core: ≤4mm²; Single core: ≤6mm² |
| Dimension (mm) | 341×330×350 |
| Net weight (kg) | 8.1 |
| Ingress protection | IP66 |
| ATEX certificate: | EPT 16 ATEX 2484 X Archived copy on this site; confirm current status before specification. |
|---|---|
| IECEx certificate: | IECEx CML 24.0116X Archived copy on this site; confirm current status before specification. |

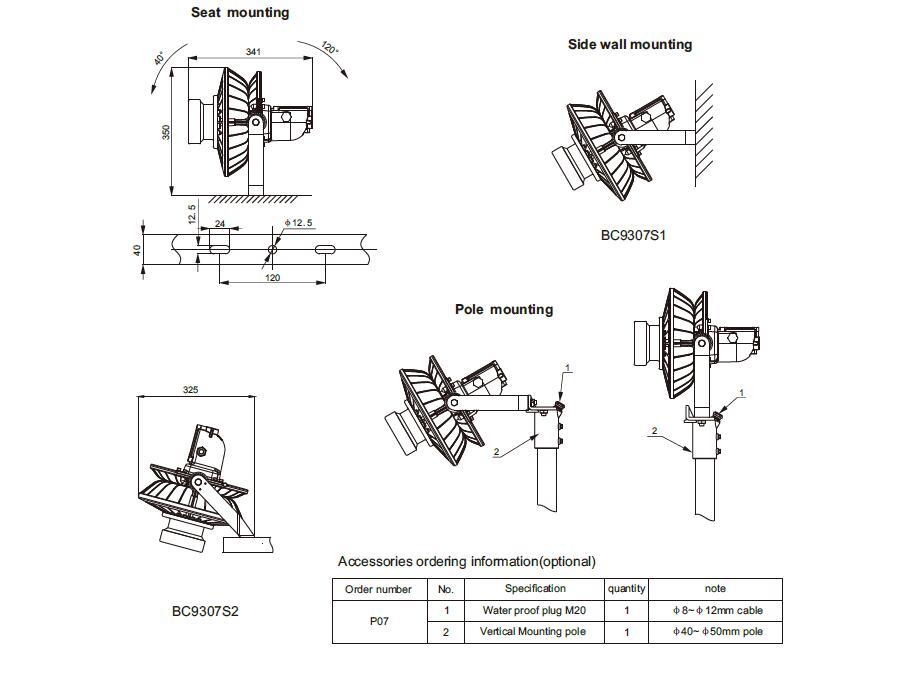

Original catalogue drawings. Dimensions are in millimetres unless stated otherwise. Open an image to inspect the full-size drawing.
| Kit / reference | Item | Description | Quantity | Notes |
|---|---|---|---|---|
| P07 | 1 | M20 waterproof plug | 1 | For Ø8–12 mm cable |
| P07 | 2 | Vertical mounting pole | 1 | For Ø40–50 mm pole |
| Reference | Space-height ratio | Mounting height | Equivalent metal-halide wattage (catalogue) | PDF page |
|---|---|---|---|---|
| BC9307S-L100-18° | — | — | 250 W | 53 |
| BC9307S-L120-18° | — | — | >250 W | 53 |
| BC9307S-L150-18° | — | — | 400 W | 53 |
| BC9307S-L180-18° | — | — | >400 W | 53 |
| BC9307S-L200-25° | — | — | >400 W | 54 |
| BC9307S-L240-25° | — | — | 400–600 W | 54 |
Original catalogue curves. Read each curve with its listed model, beam and supply. Open an image to inspect the full-size plot.


Original catalogue extract · 2 pages · PDF · 349 KB
View documentOriginal catalogue pages 53, 54
